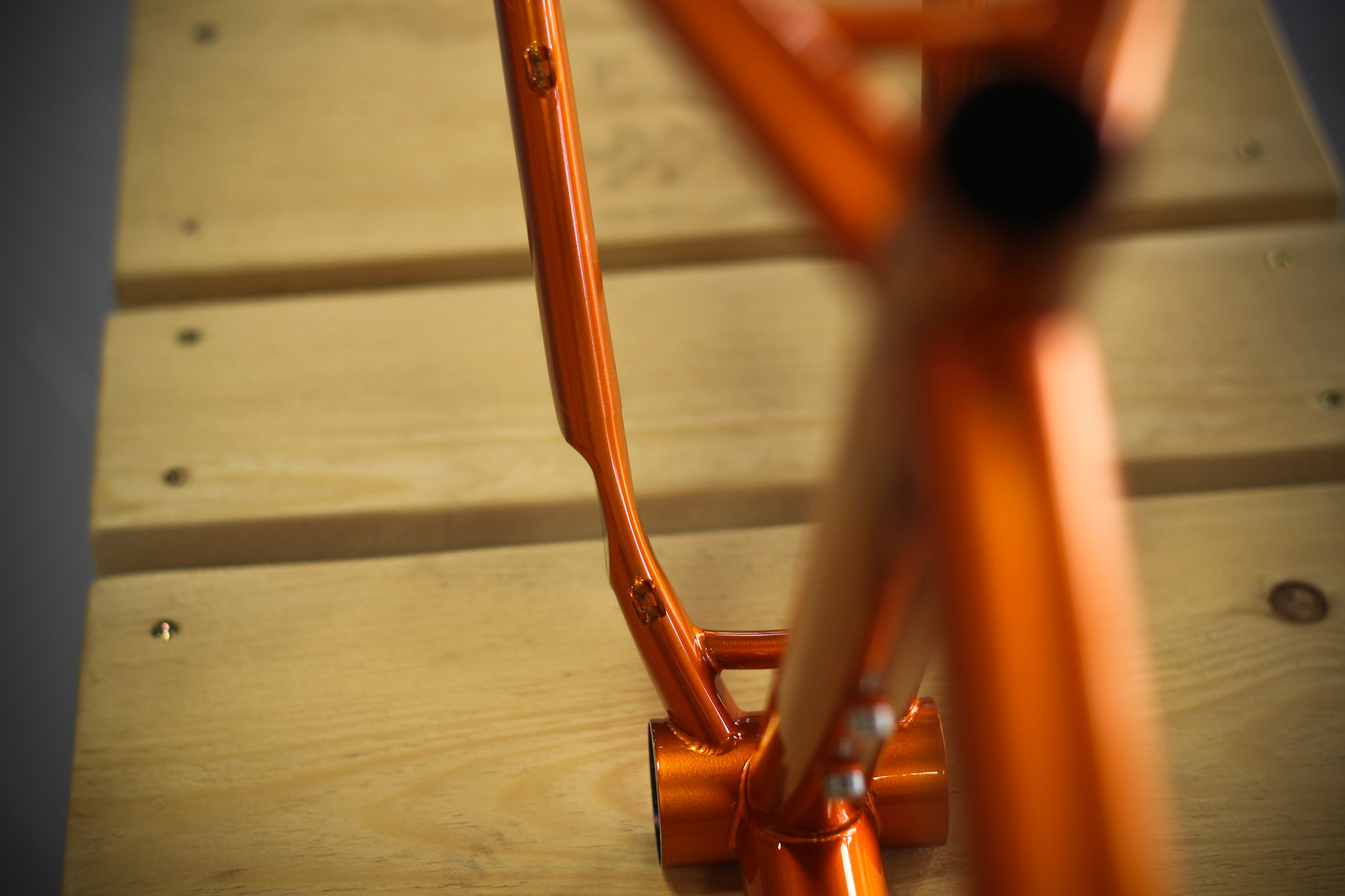

Enough tire and chainring clearace thanks to this chain stay cut.

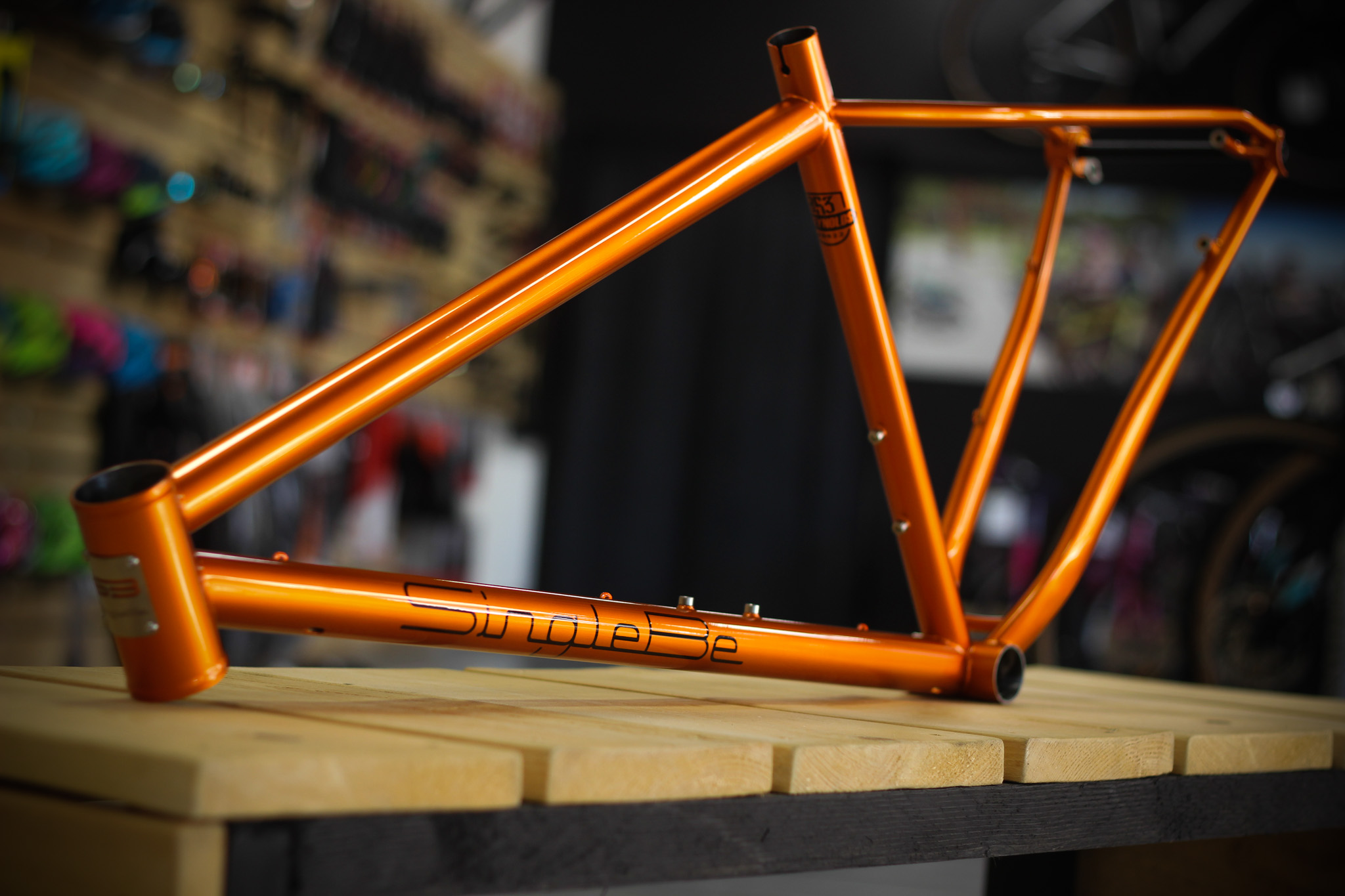

Candy orange paint over silver metallic base make so nice deep gloss especially under the sun.
PM stainless mounts with cleaned faces.. very easy to adjust a caliper then…

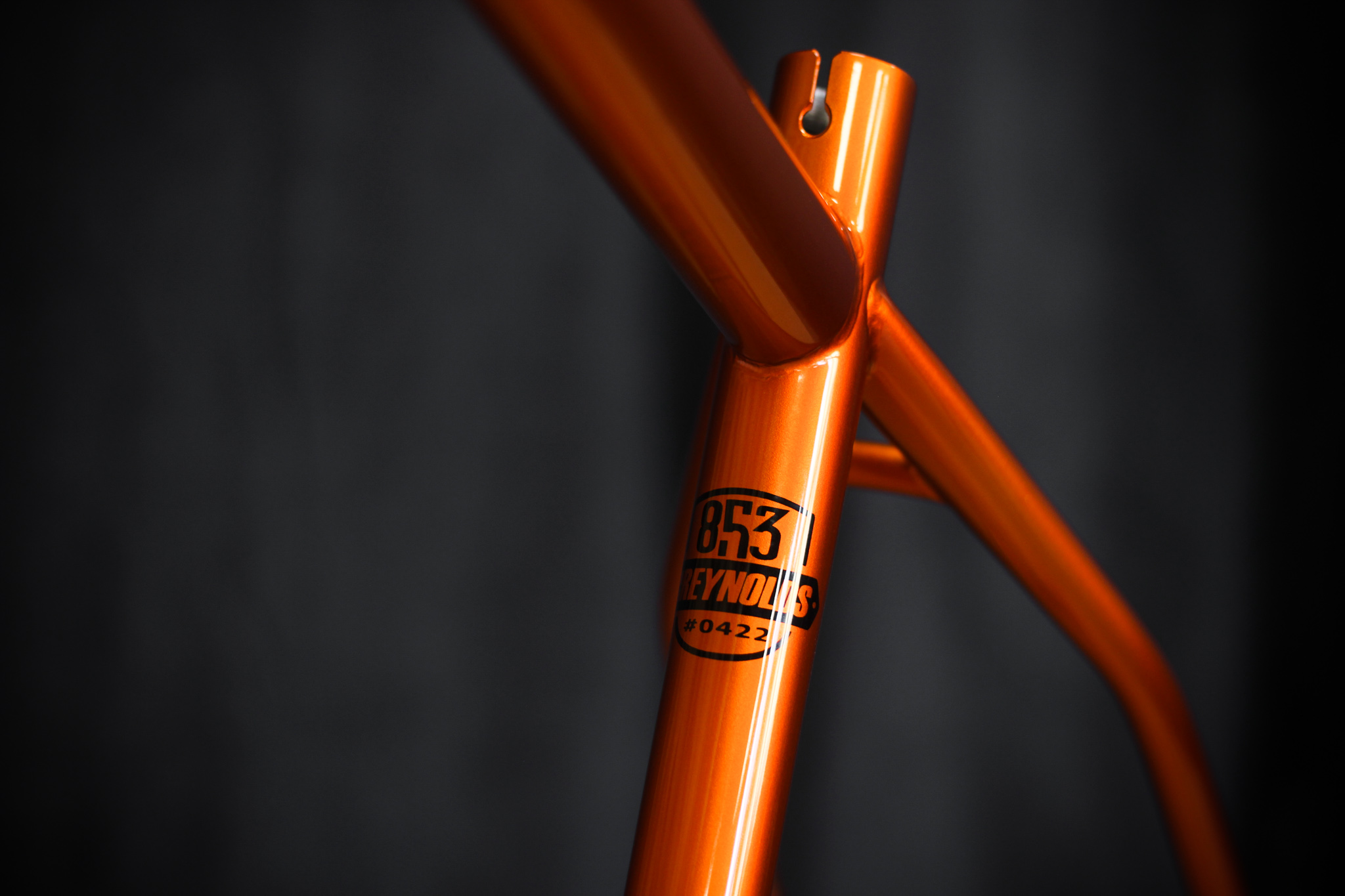

Time fly fast! No 422 already.
| Steel | Reynolds 853 / Dedacciai ZeroUno CS, ZeroUno CS |
|---|---|

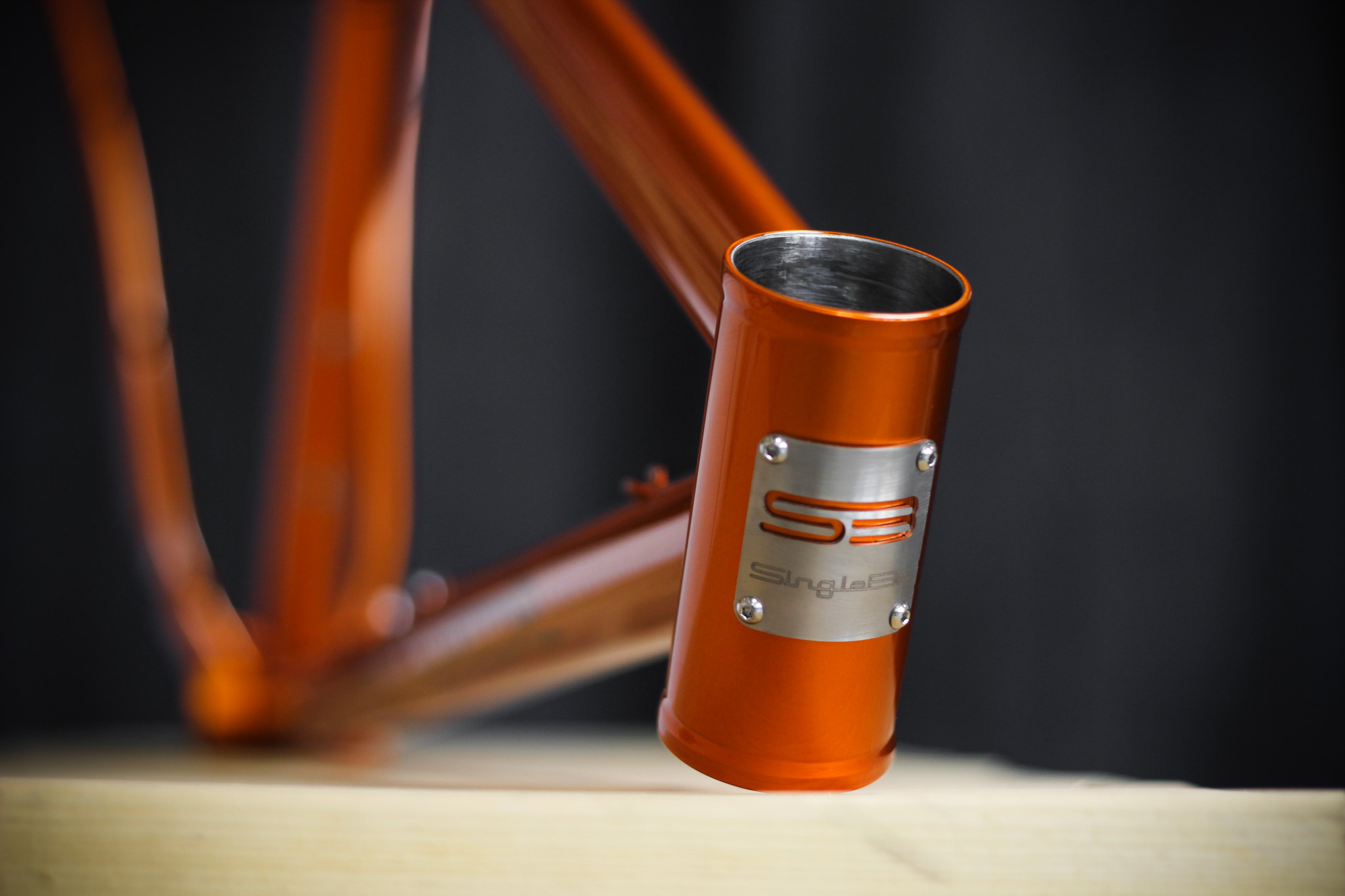

| Headset | 44 mm semiintegrated |
| BB | BSA, 73 |
| Cable routing | brzda vnitřní, přehazovačka venkovní |
| Max tire size | 29 x 2.4 |
|---|---|
| Dropouts | 148x12 |
| Drive compatibility | 1x11-12, 52 mm CL |
| Color | candy orange over silver metallic base |

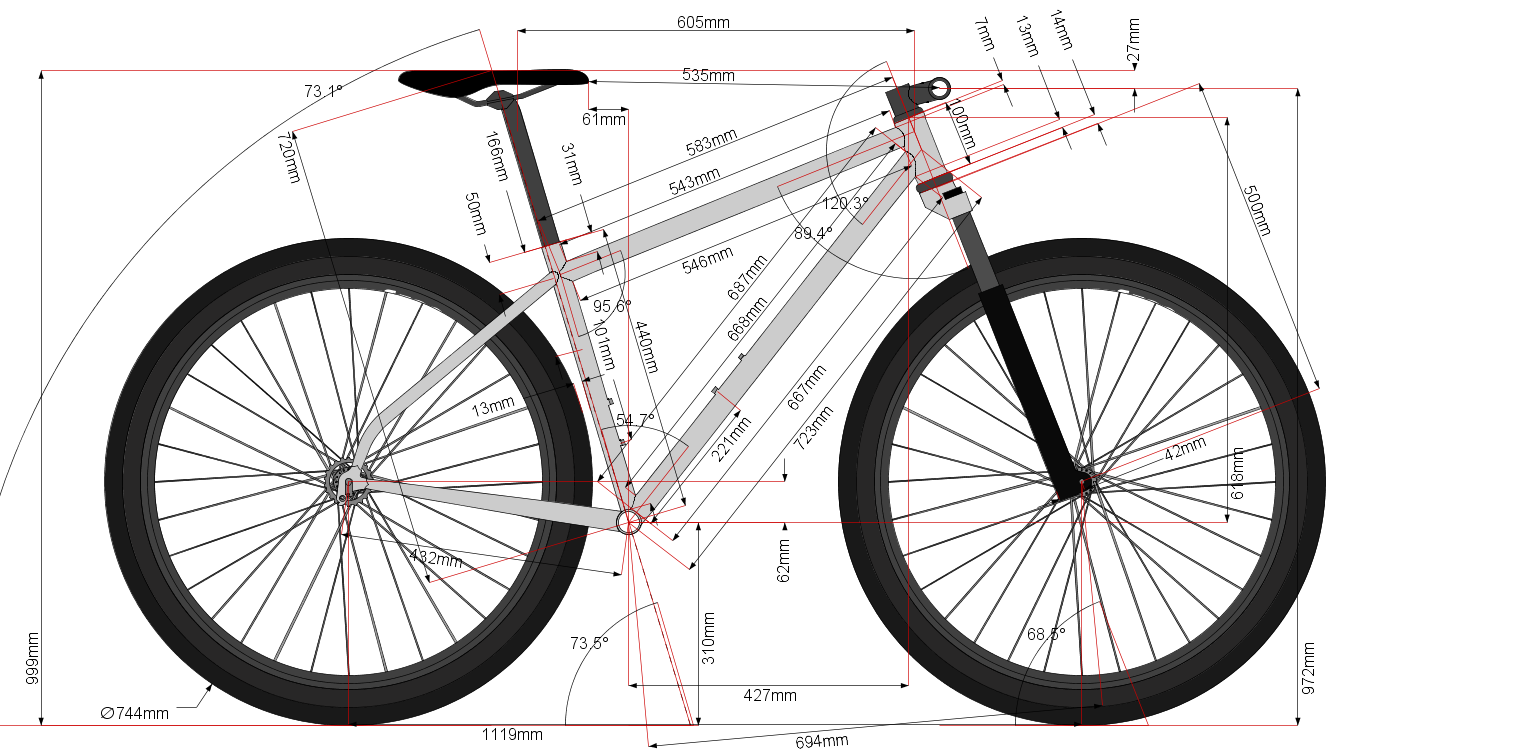

| TTA | 583 mm |
|---|---|
| TTE | 605 mm |
| HT | 100 mm |
| ST | 440 mm |
| CS | 432 mm |
| HA | 68.5° |
| SA | 73.0° |
| BB drop | 62 mm |
| Reach | 427 mm |
| Stack | 618 mm |
| BB height | 310 mm |
| Fork AC | 500 mm |
| Wheelbase | 1120 mm |
