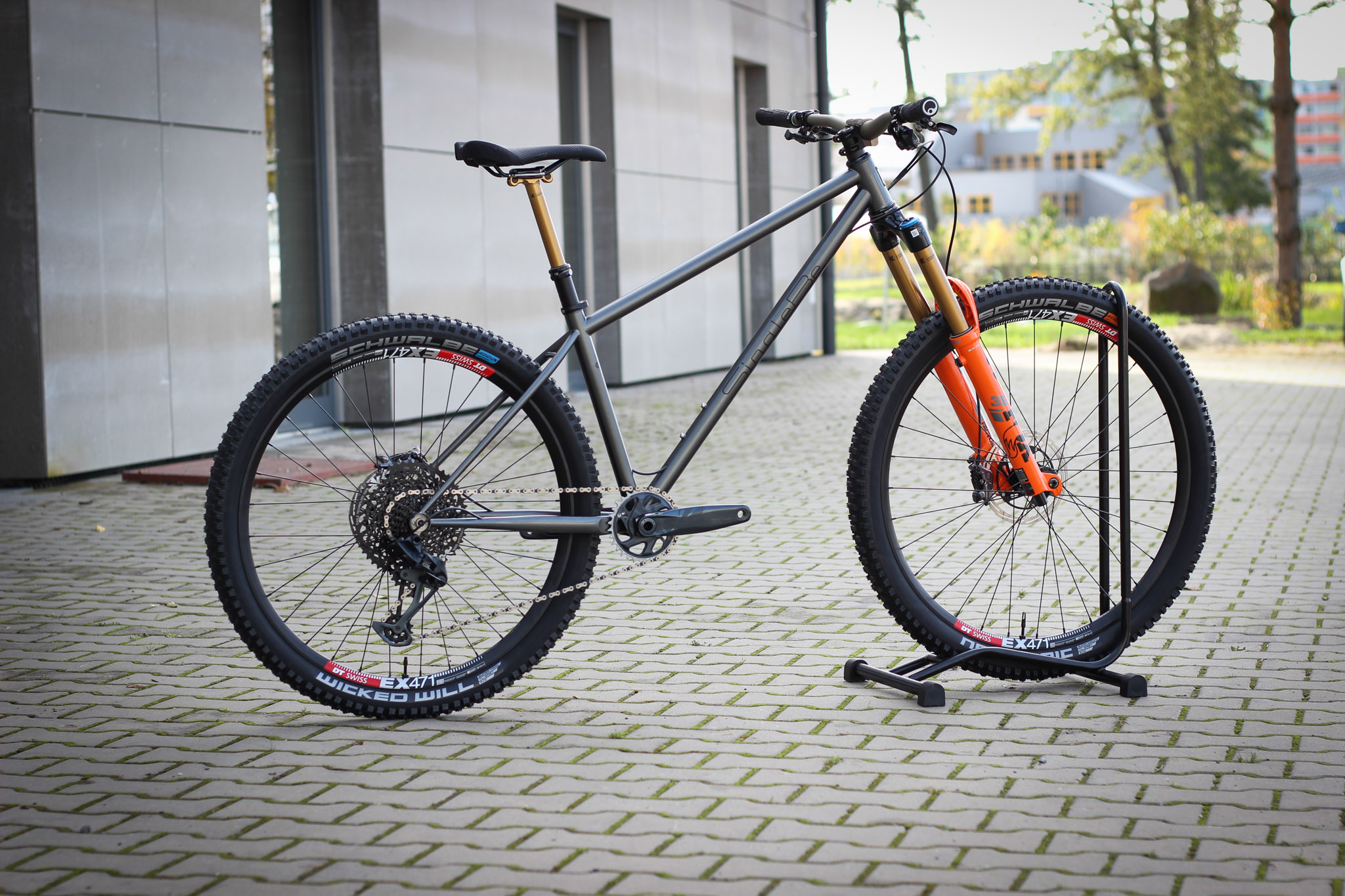

Trail-Killer new generation with a modern aggresive trail/enduro geometry.

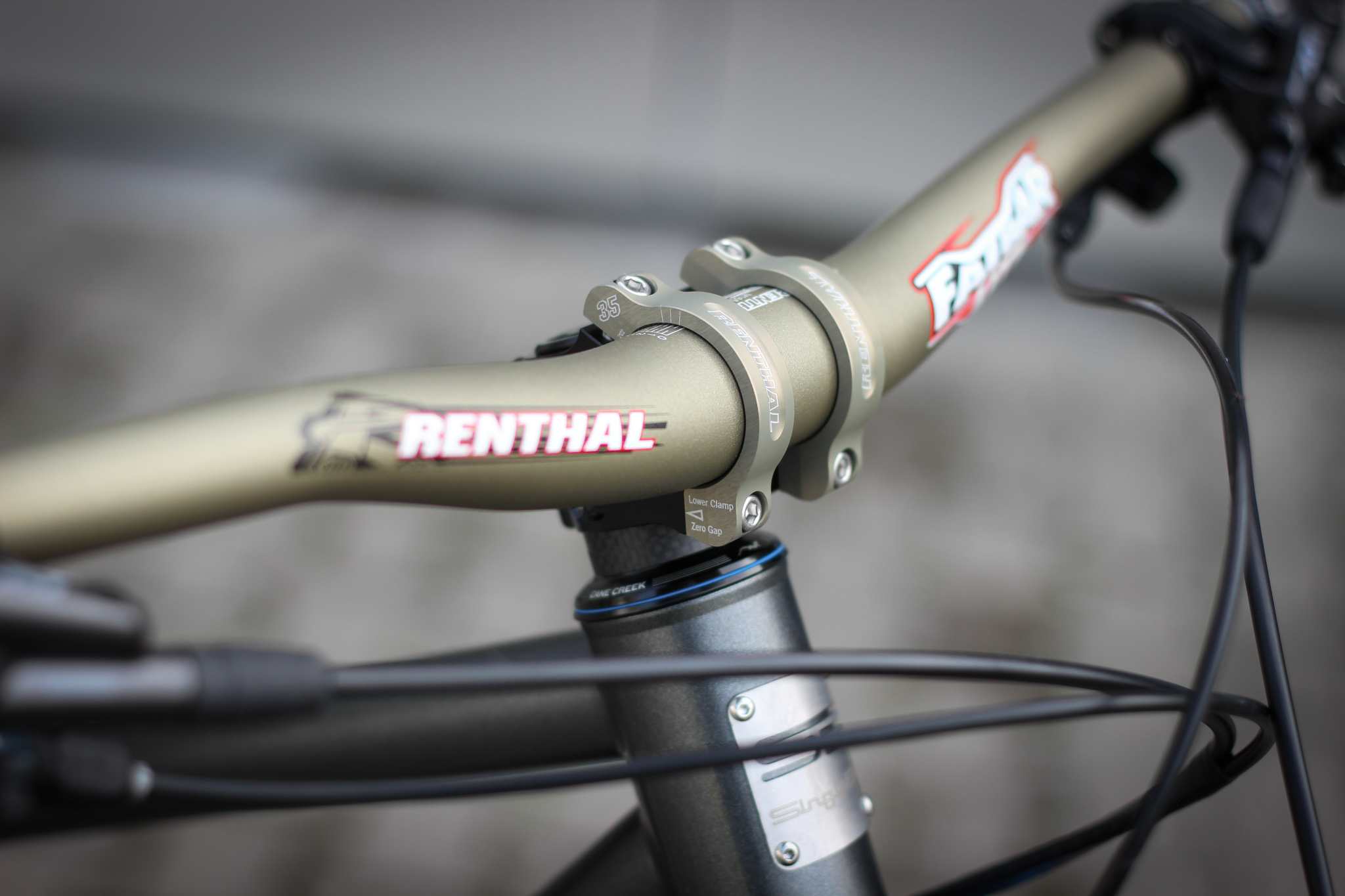

Renthal is super fancy esspecialy with the shortest stem possible.
Massive FOX 36 fork with 160 mm travel.

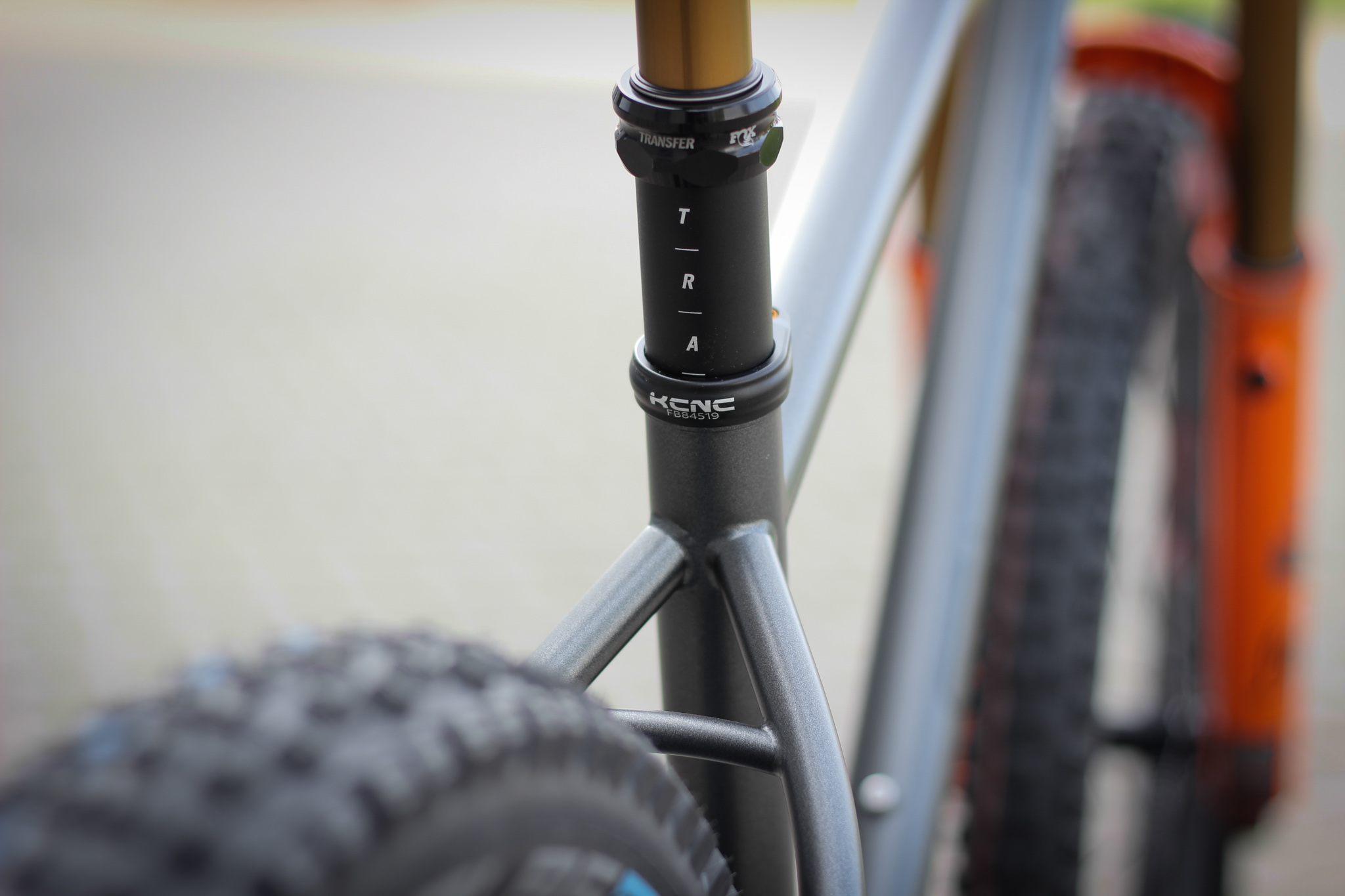

Internal cable routings for a dropper seatpost FOX Transfer.
Jagwire 180 mm rotors and PM reinforcement thru entire rear triangle.

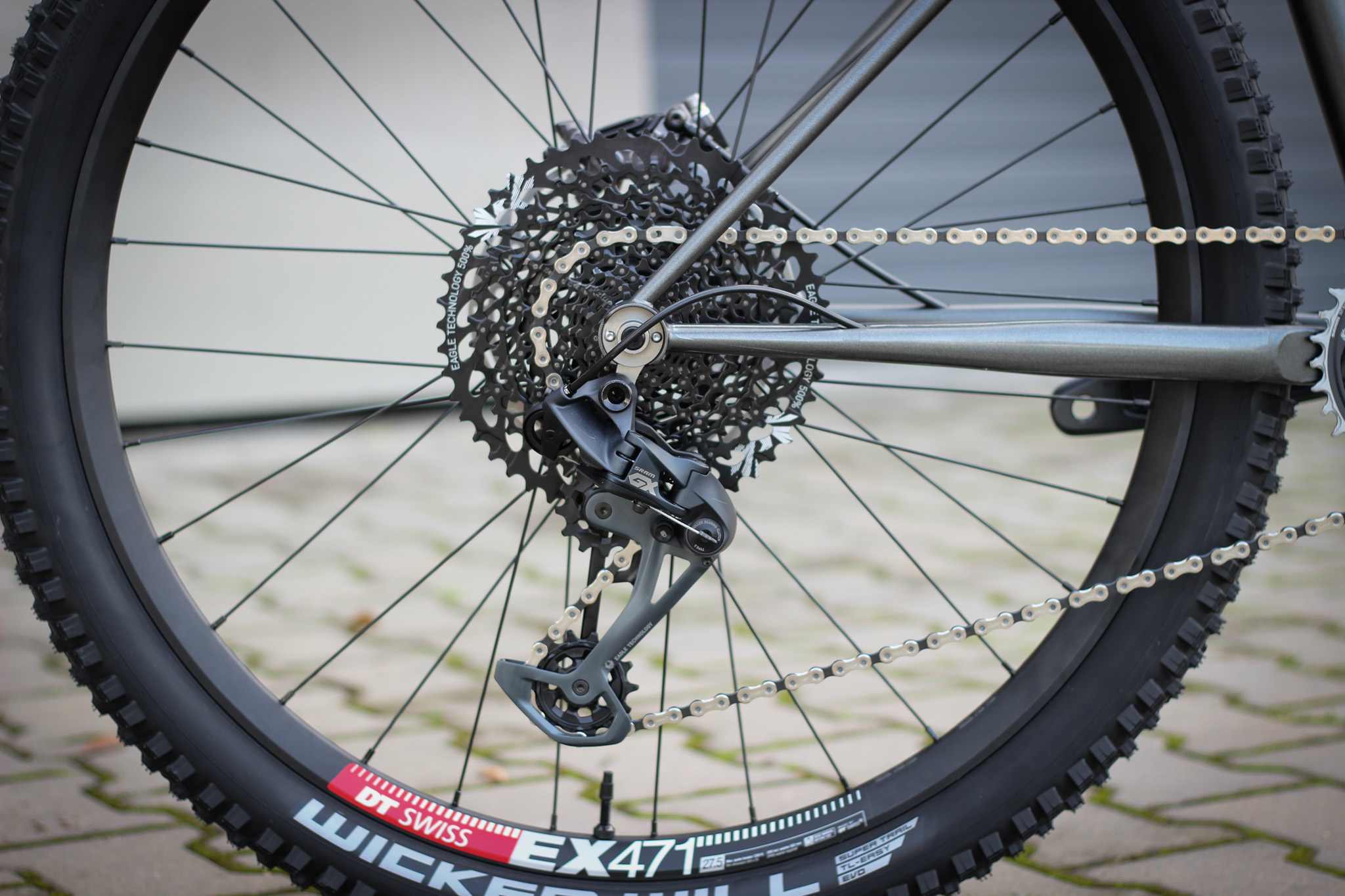

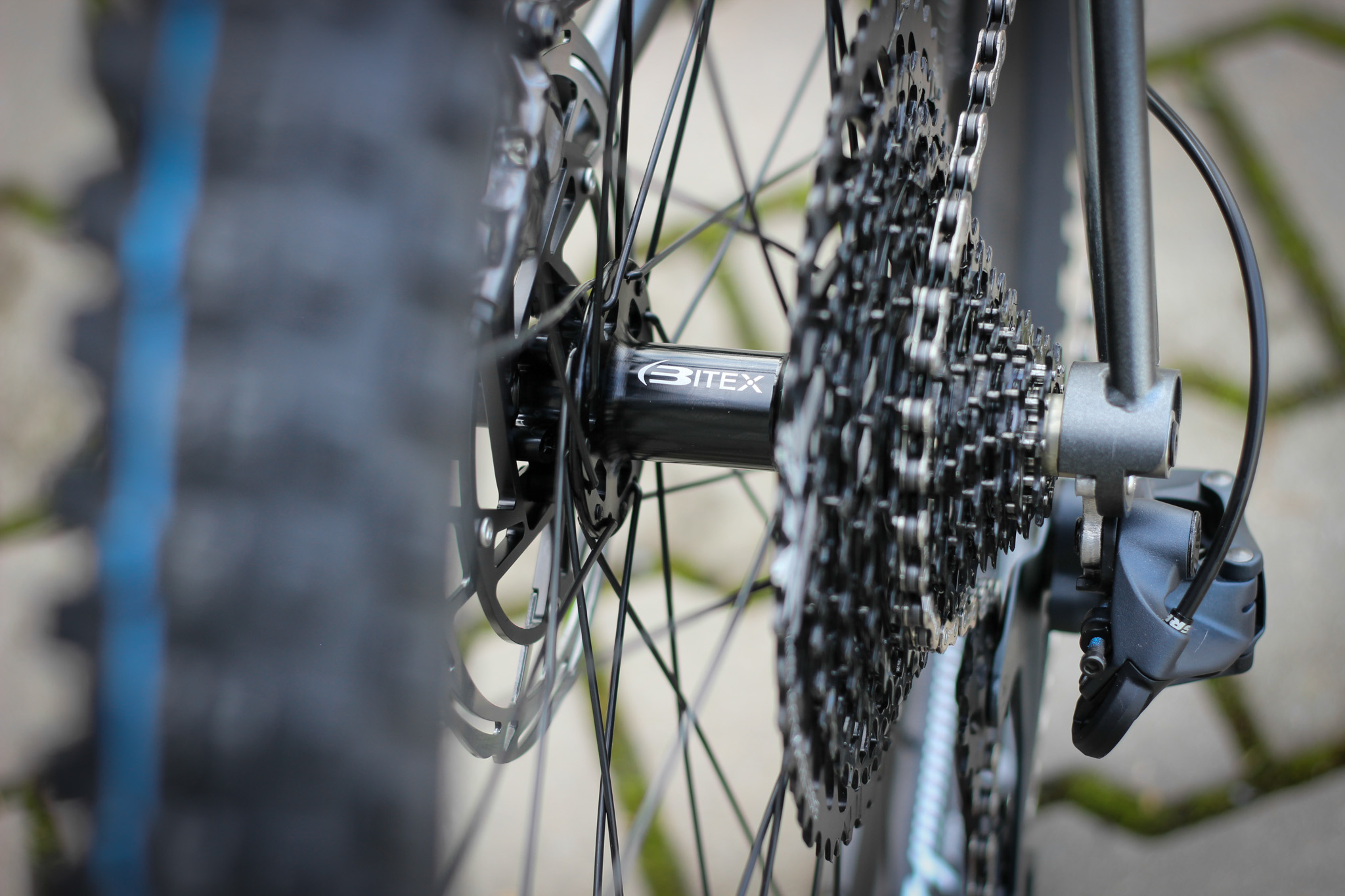

These wheels we built with Bitex BX211 hubs and with legendary DT Swiss EX471 rims.

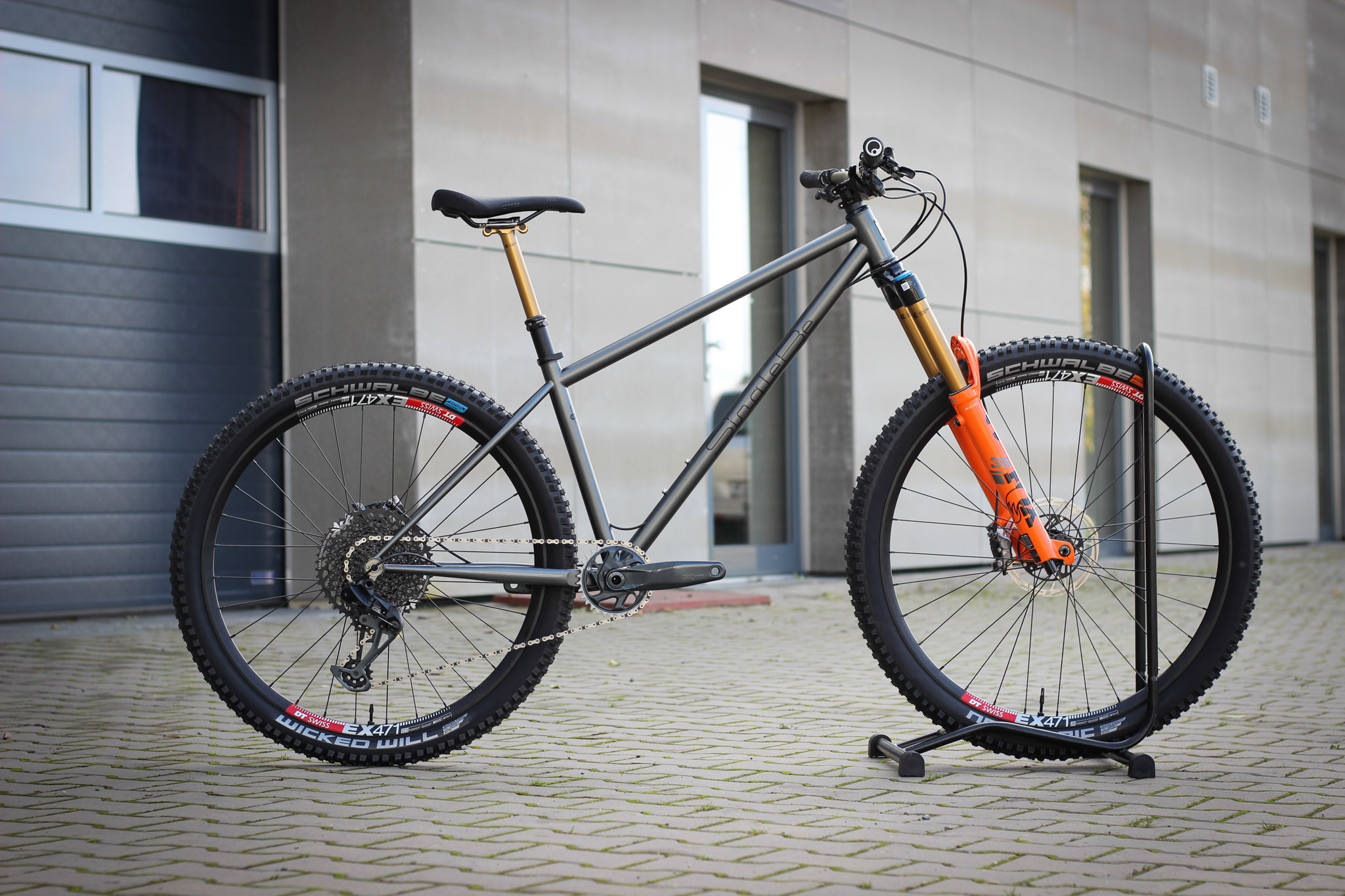

Gloss orange FOX and matte antracit frame make a nice package !

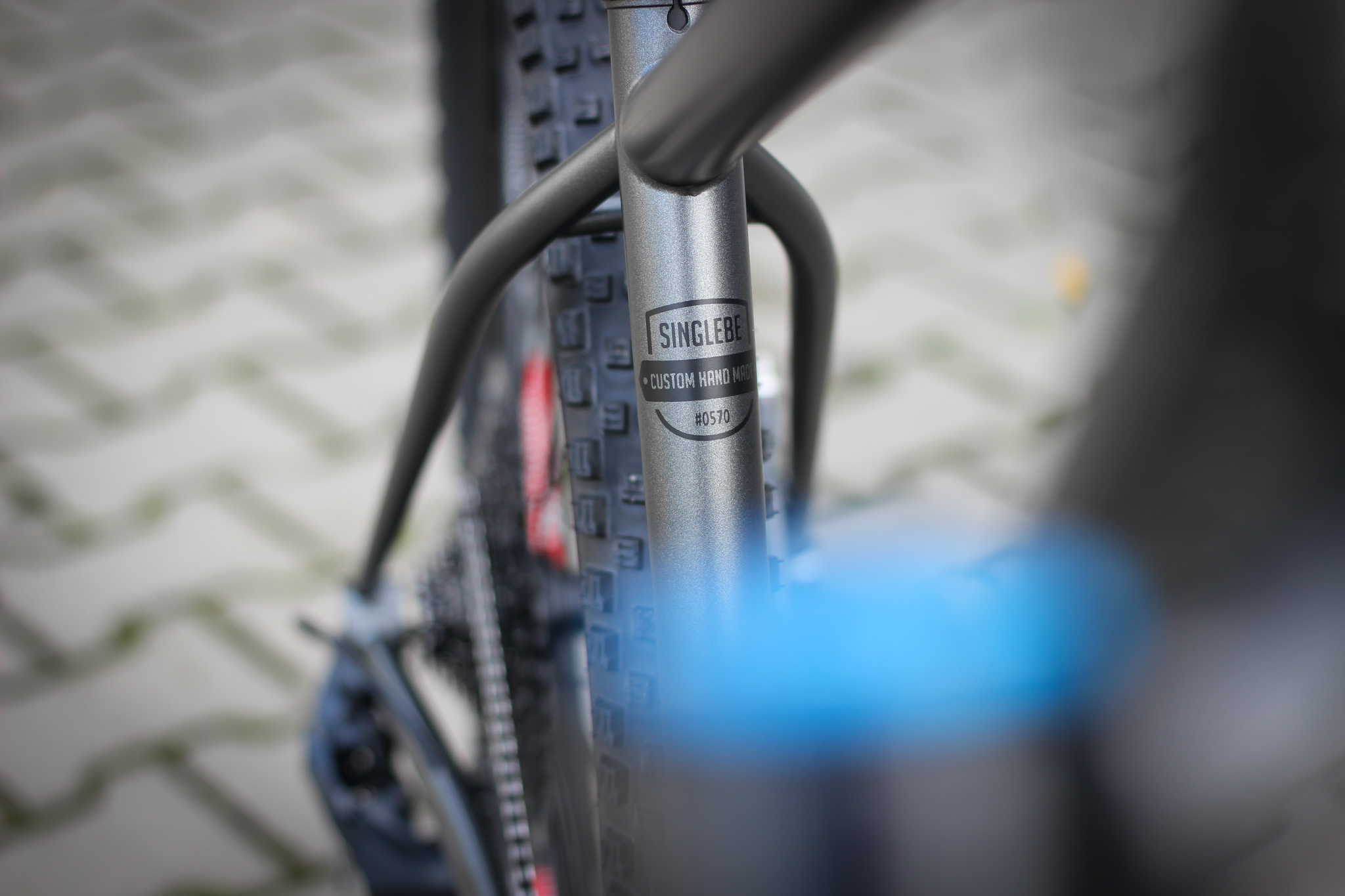

| Frame | Reynolds 853 / Dedacciai ZeroUno stays |
|---|---|
| Headset | Cane Creek 40 |
| Fork | FOX 2024/23 F36-29 FLOAT160 GRIP2 44mm 15x110 KABOLT-X ORANŽOVÁ |
| Brakes | Shimano XT M8120 |
| Shifting | Sram GX Eagle 1x12 |
| RD | Sram GX Eagle 1x12 |
| Cassette | Sram GX Eagle 12 sp 10-50 |
| Chain | Sram GX |
| Seatpost | FOX Transport Factory 150 mm travel 30.9 |
| Handlebars | Renthal Lite 760x20 |
| Stem | Renthal APEX 35/33 |
|---|---|

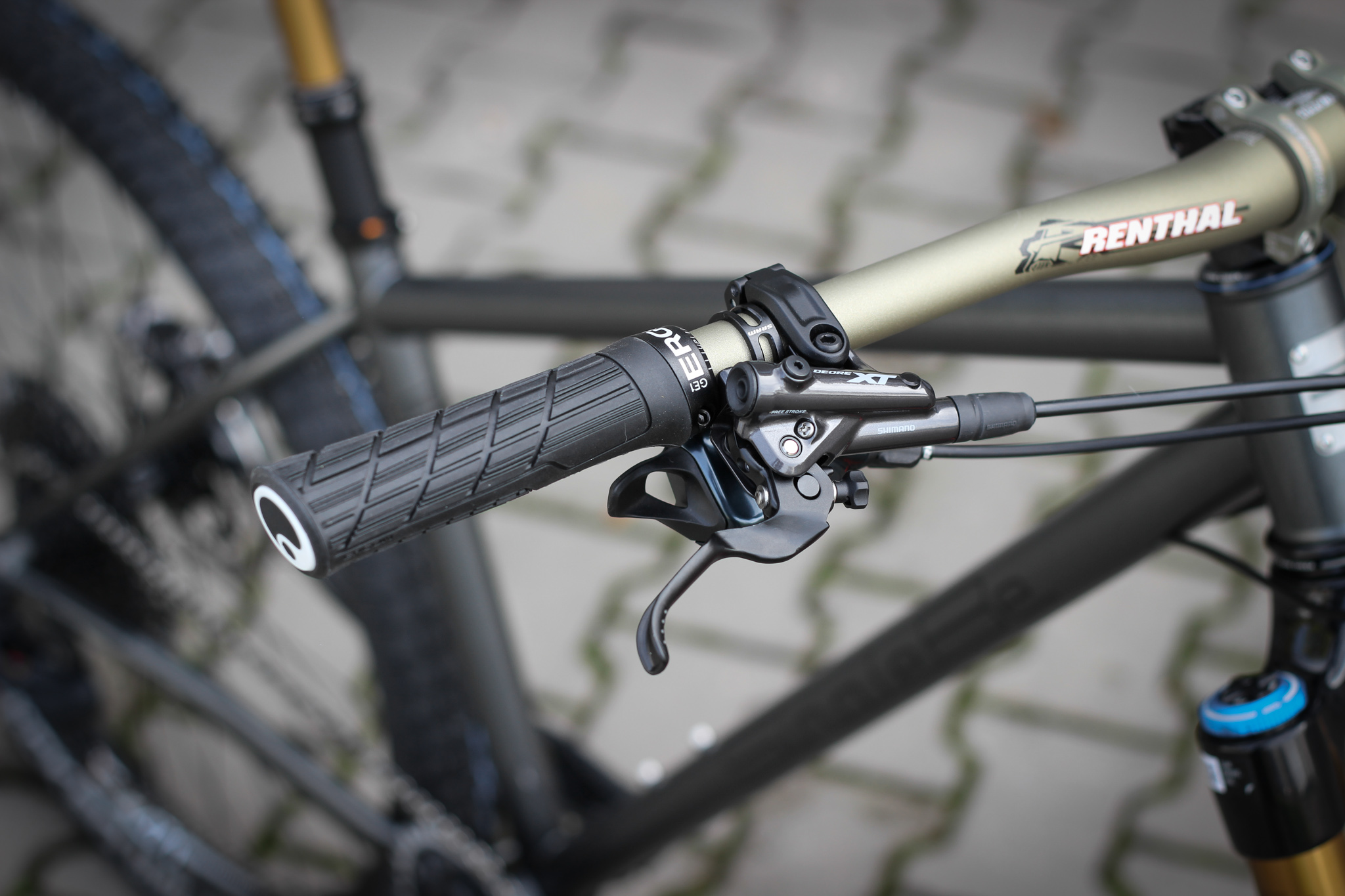

| Grips | ERGON Grips GE1 EVO black |
| Front hub | Bitex BX211F 32h 110x15 |
| Rear hub | Bitex BX211R 32h 148x12 XD |

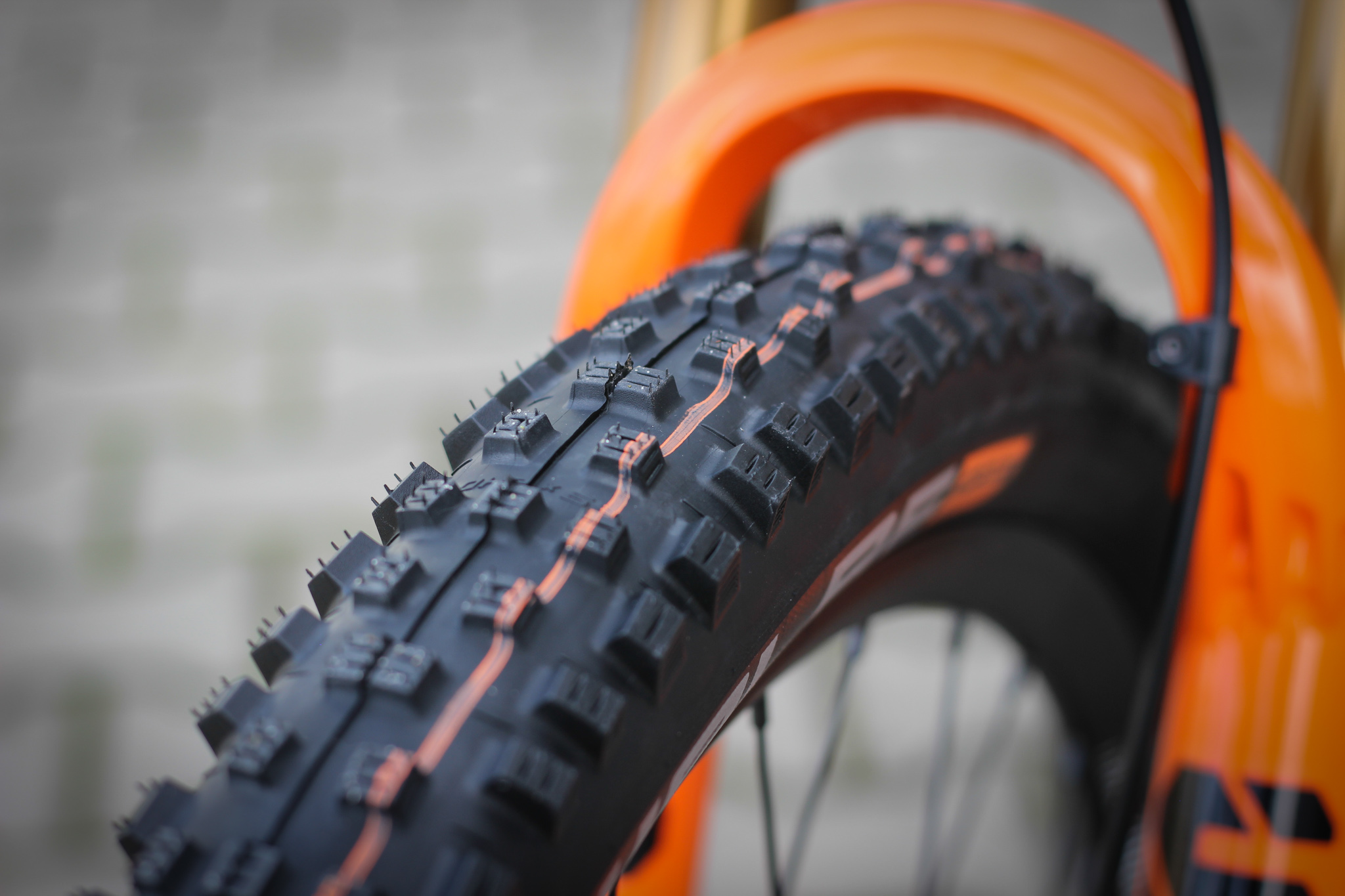

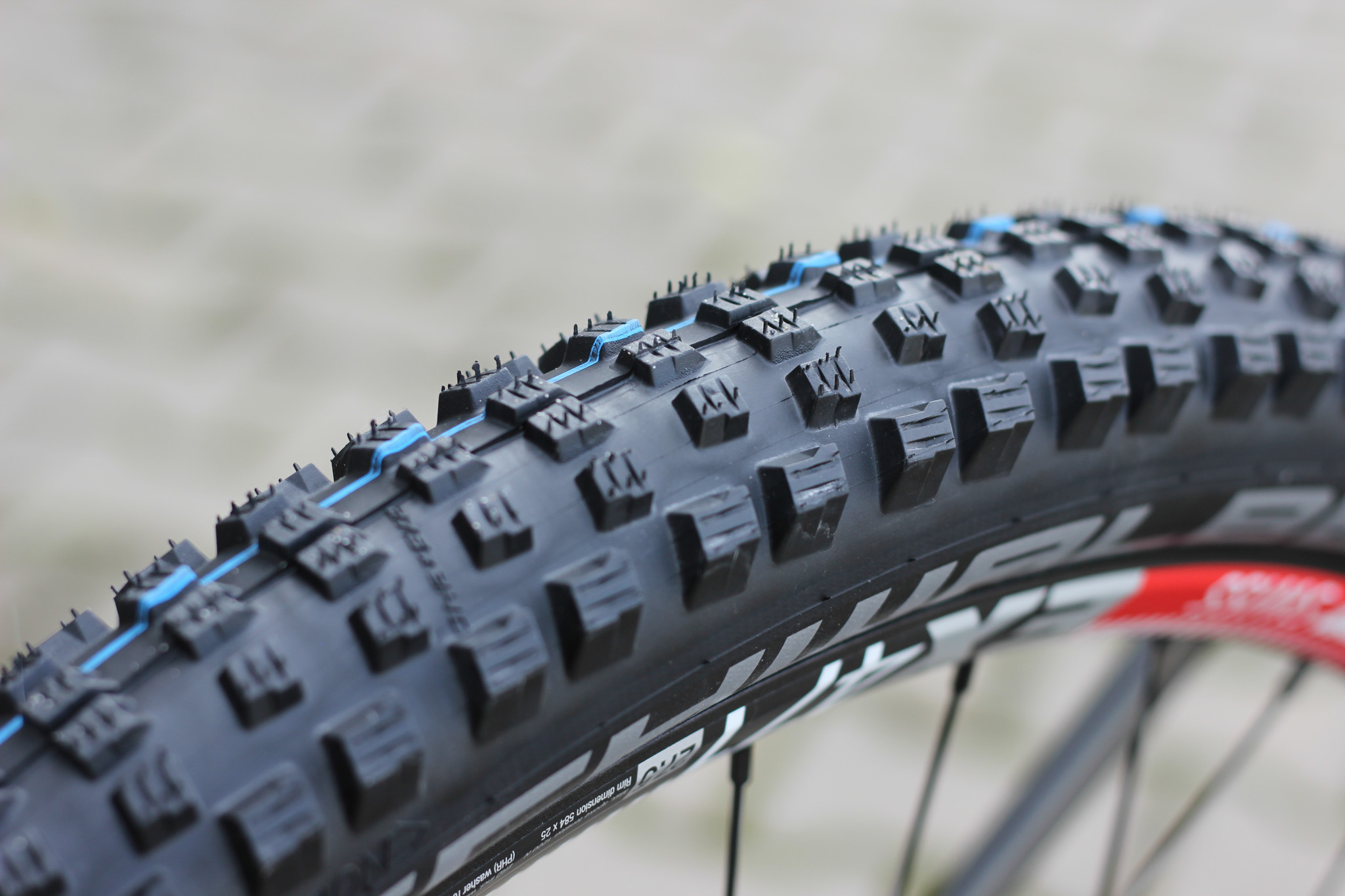

| Tires | Schwalbe Nobby Nick Addix Soft Super Ground 29x2.35 / Schwalbe Wicked Will Addix Speed Super Trail 27.5x2.35 |
| Rims | DT Swiss EX471 32h |
| Spokes | Pillar PSR14 black |

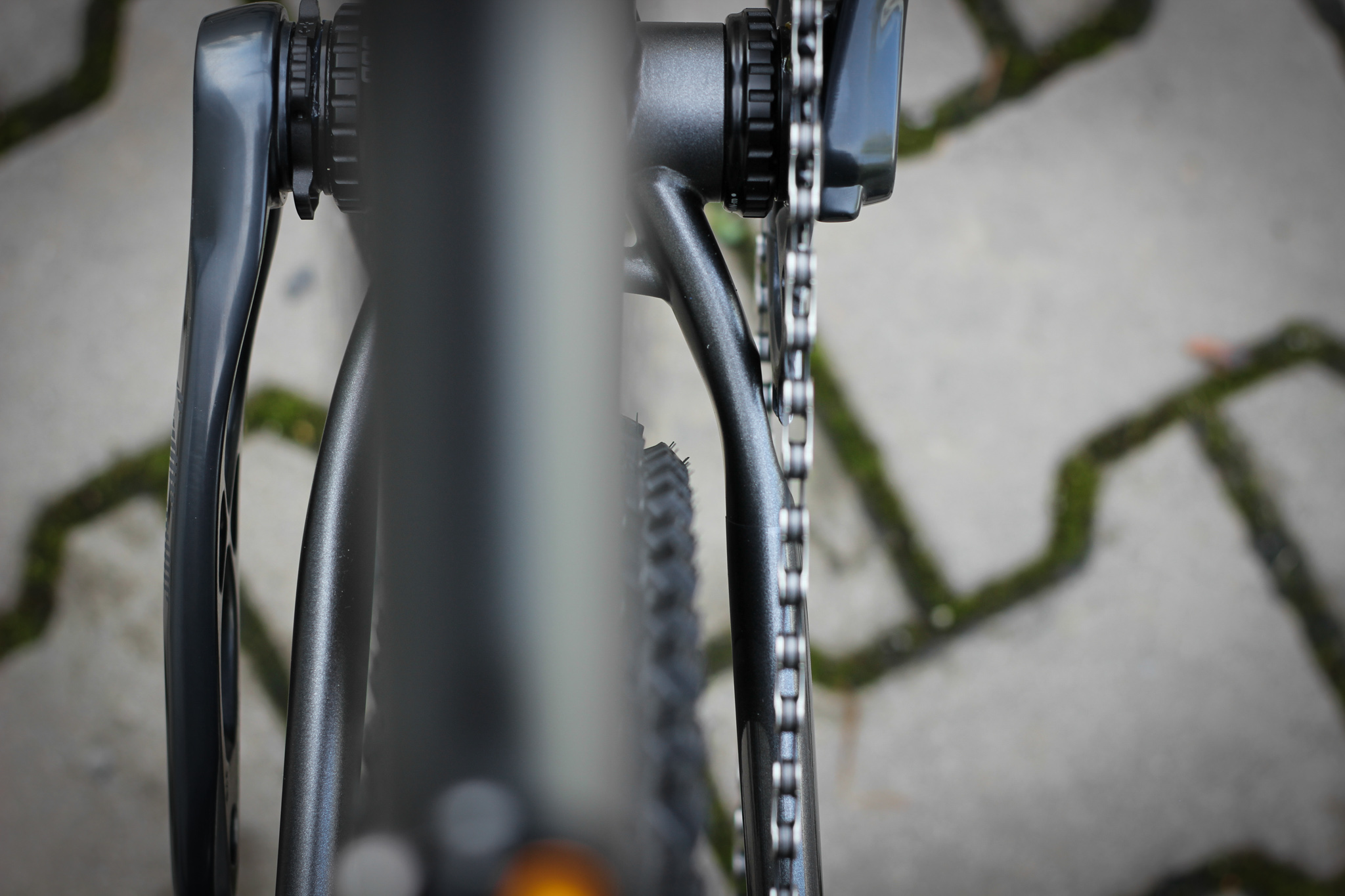

| Crankset | Sram GX Eagle DUB Boost 32T |
| Saddle | WTB Volt Ti medium |
| Weight | 12.5 kg w/o pedals |

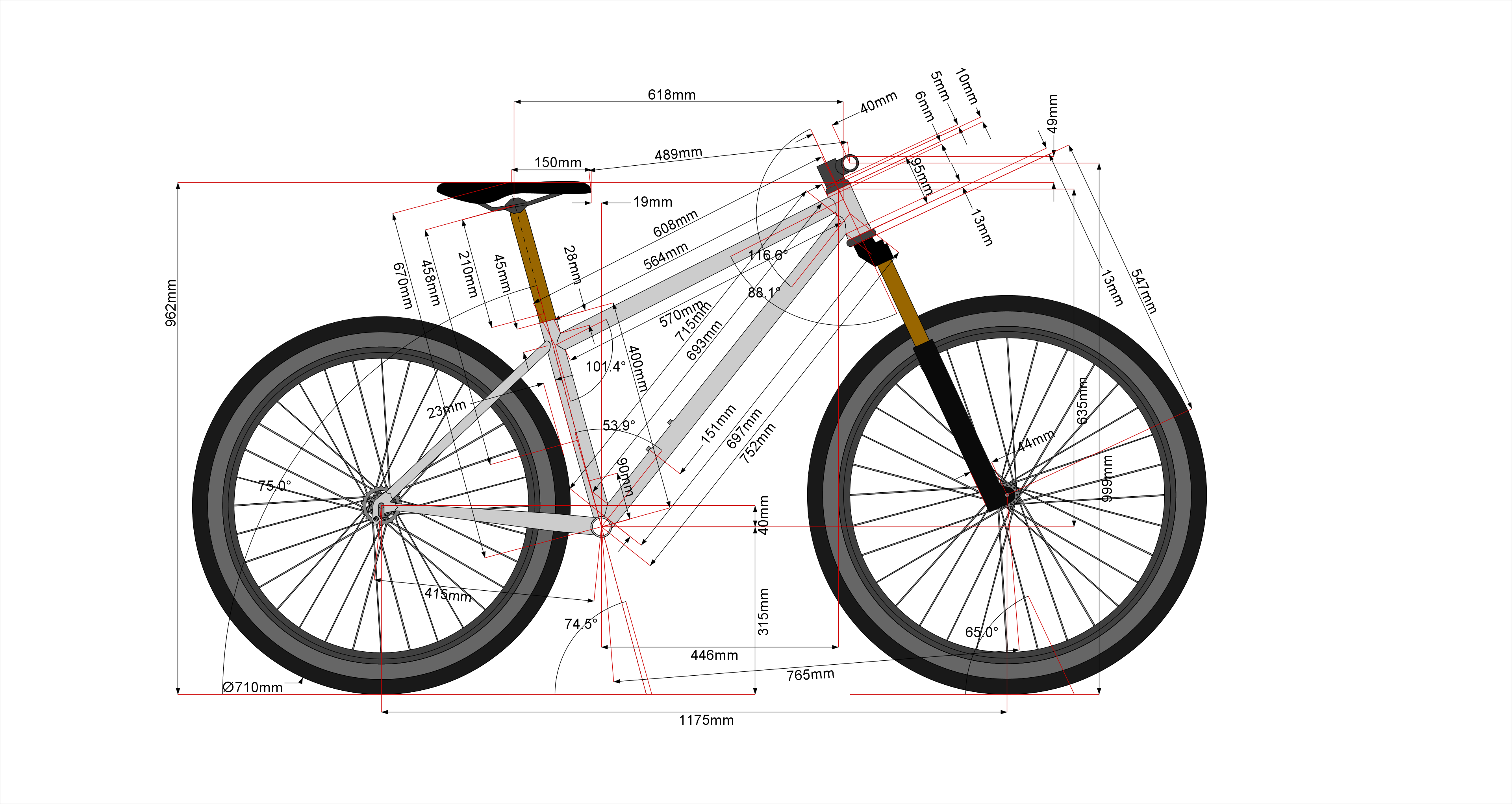

| TTA (B) | 608 mm |
|---|---|
| TTE (C) | 618 mm |
| HT (D) | 95 mm |
| ST (A) | 400 mm |
| CS (E) | 415 mm |
| HA (G) | 65° |
| SA (F) | 74.5° (75° effective) |
| BB drop | - 40 mm |
| BB height | 315 mm |
| Fork AC | 547 mm no sag |
| Wheelbase | 1175 mm |
| Stack | 635 mm |
| Reach | 446 mm |
