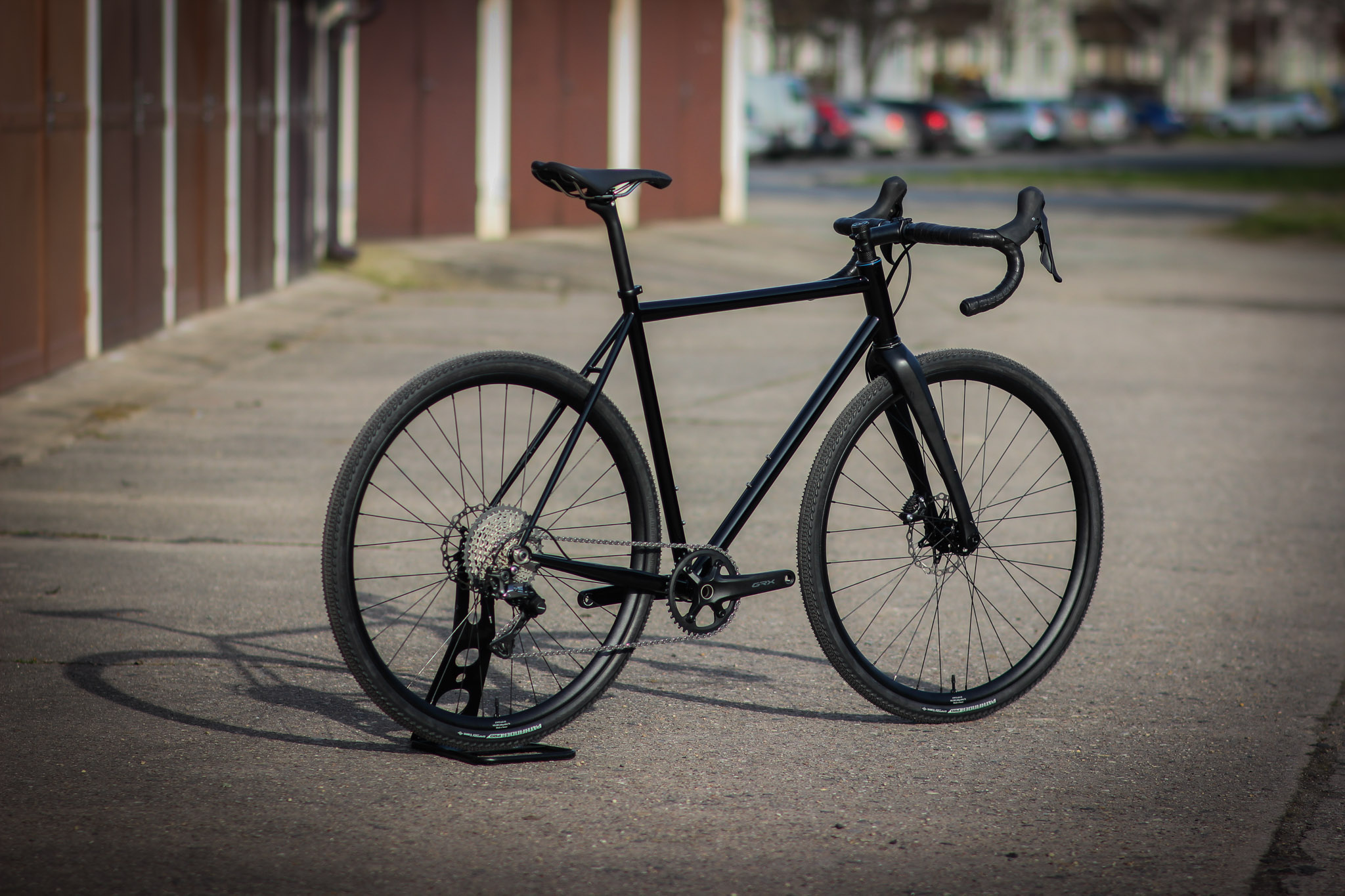

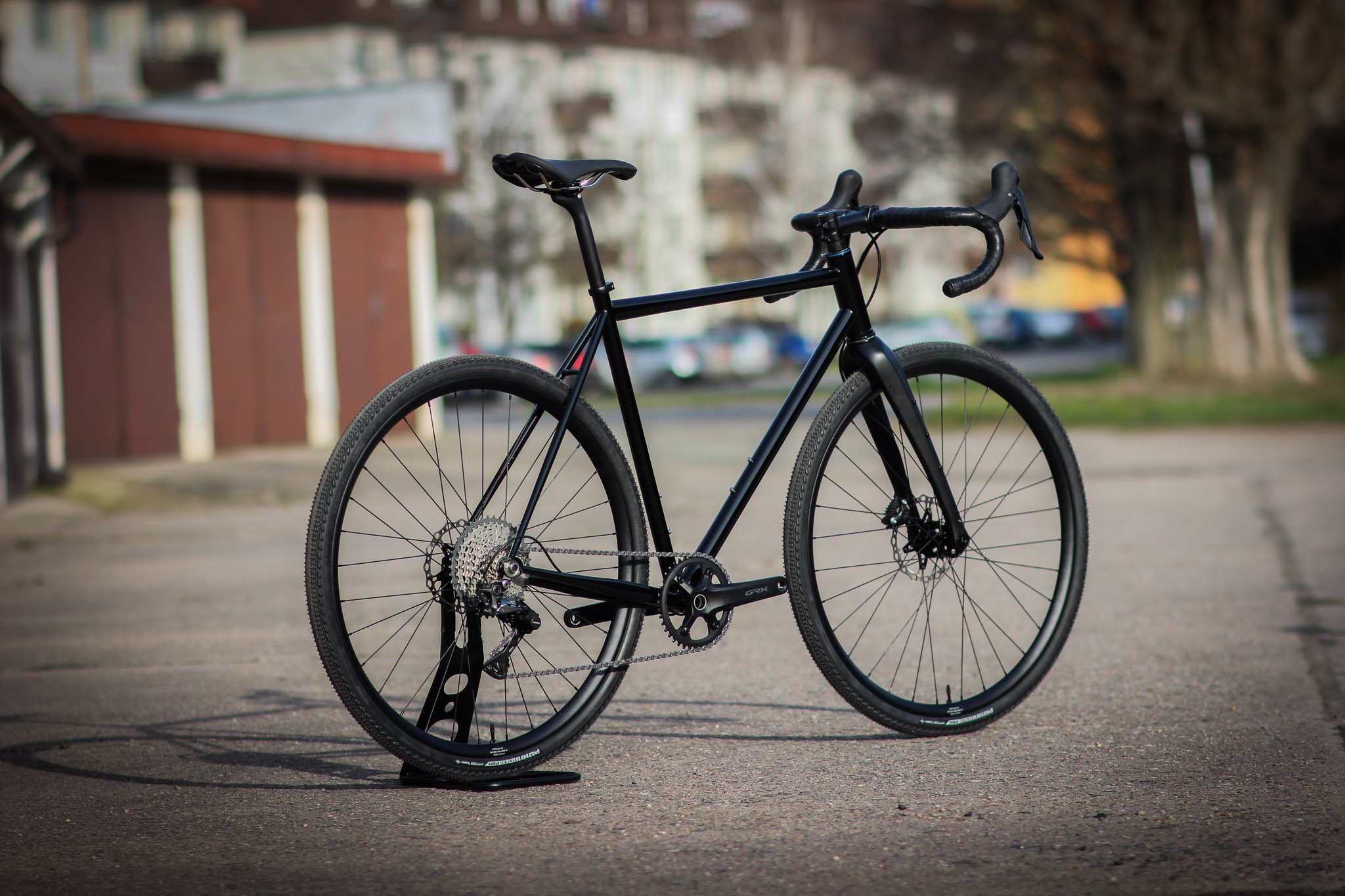

Exactly as customer wanted: glossy black with matte black parts, no logos at all. Simple and clean design.
This is fresh new Columbus Futura fork. Futura MAX with great tire clearance, adjustable fork offset and with cage and fender mounts.

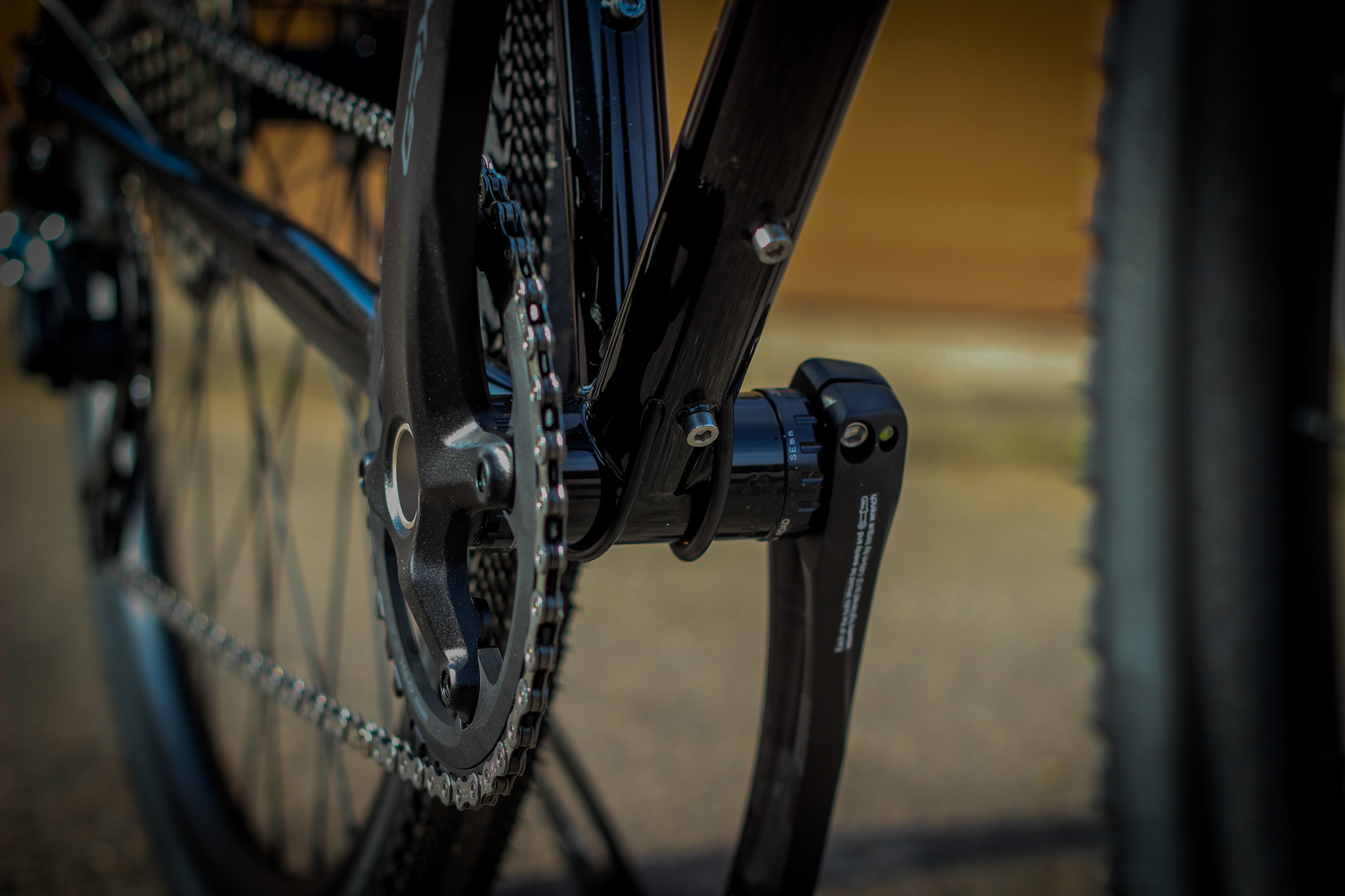

Rear deraileur RD-RX812 for 1×11 drive, it is working great with XT cassette M8000 11-42.
You can easily adjust fork offset by switching these fork dropouts inserts. And you can change bike behaviour quite a bit.
Third bottle cage and internal cable routings are so typical for our gravel bikes.
| Frame | Reynolds 853/25 + Dedacciai ZeroUno CS |
|---|---|
| Headset | Cane Creek 40, ZS/EC44/40 |
| Fork | Columbus Futura MAX, 100x12, adjustable offset, bottle + fender mounts |
| Brakes | Shimano BR-RX400 FM |
| Rotors | A2Z, 160 mm |
| Shifters | Shimano ST-RX600 1x11 |
| RD | Shimano RD-RX812 1x11, max 42T cap. |
| Cassette | Shimano XT 11-42 |
| Seatpost | TRIGON SP110, no logo, matte |
| Clamp | Javax 29.8 |
| Bars | Ritchey Butano Comp 46 |
| Stem | Alu 90 x -7, no logo |
|---|---|
| Bar tape | PRO black |
| Front hub | Javax M219, INT6, 100x12, 32H |
| Rear hub | Javax M219, INT6, Shimano, 142x12, antibike |
| Tires | Specialized Pathfinder Pro 2BR 700 / 700x38 |
| Rims | Javax WD-255, Inter 25 mm, 32H, TLR |
| Crankset | Shimano FC-RX600, 40T, 172.5 |
| Saddle | Fabric Elite Scoop Schallow |
| Spokes | Pillar PSR 14 |
| Weight | 9.9 kg |

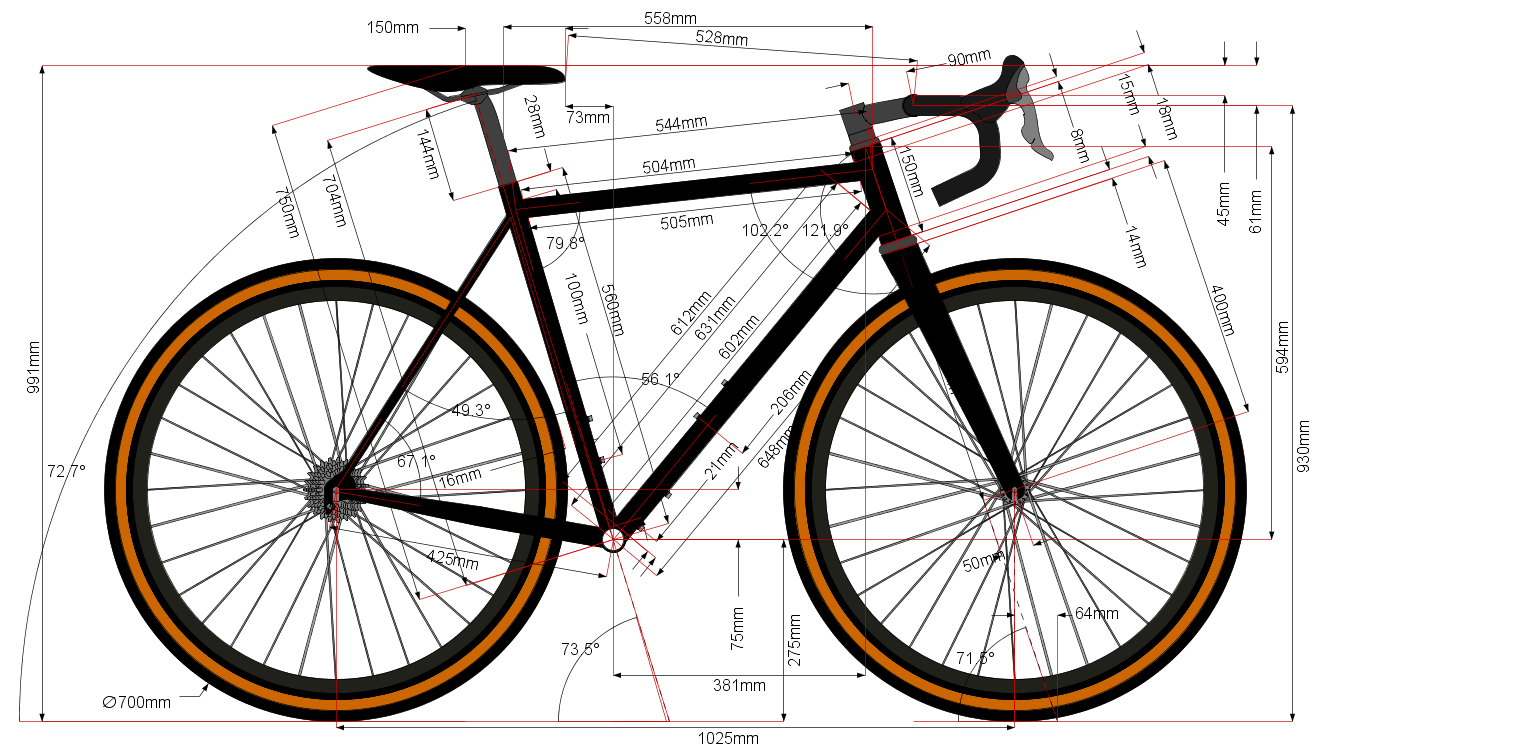

| TTA (B) | 544 mm |
|---|---|
| TTE (C) | 558 mm |
| HT (D) | 150 mm |
| ST (A) | 560 mm |
| CS (E) | 425 mm |
| HA (G) | 71.5° |
| SA (F) | 73.5° |
| BB drop | - 75 mm |
| BB height | 275 mm |
| Fork AC | 400 mm |
| Rozvor | 1025 mm |
| Reach | 381 mm |
| Stack | 594 mm |
