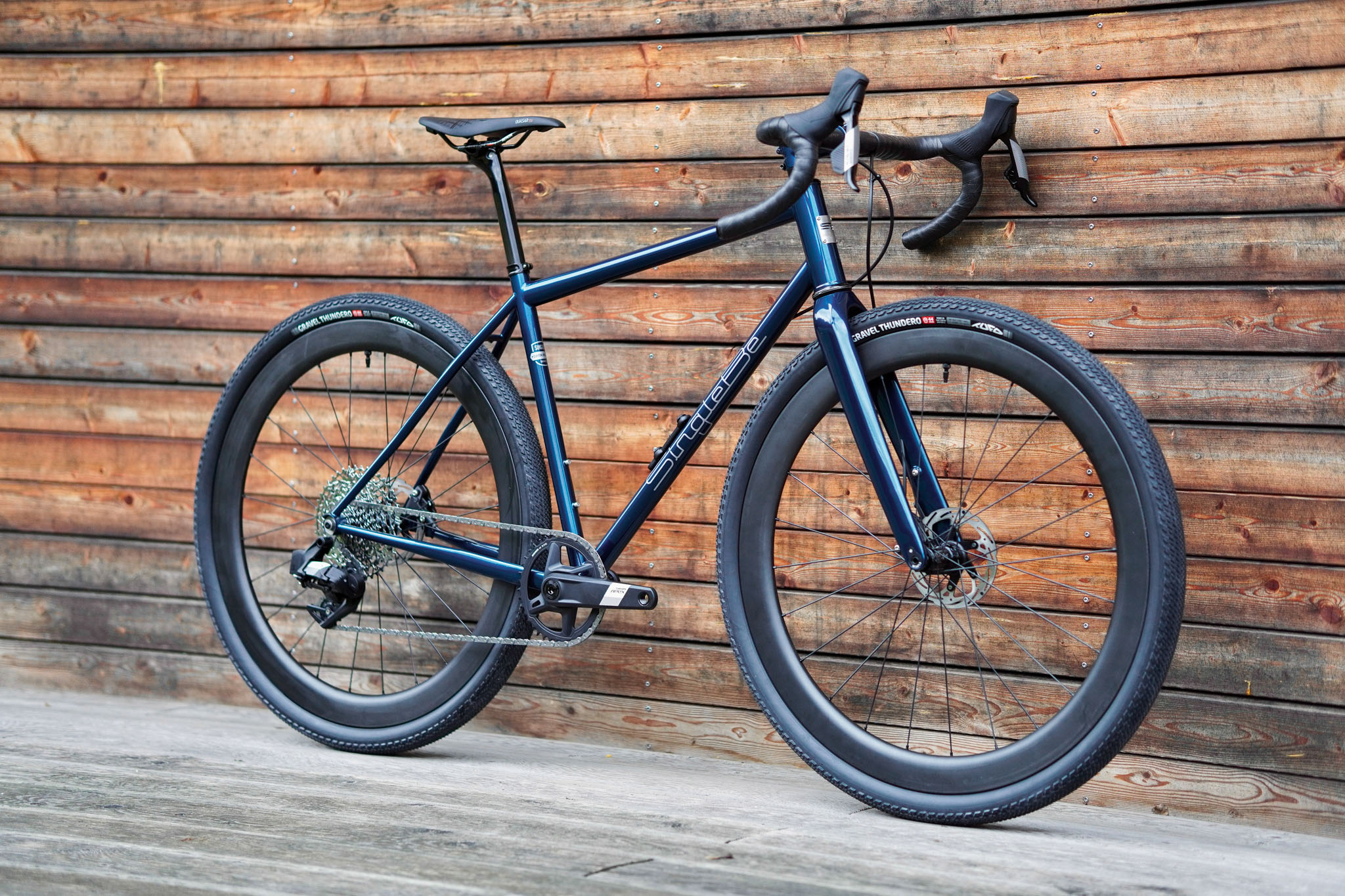

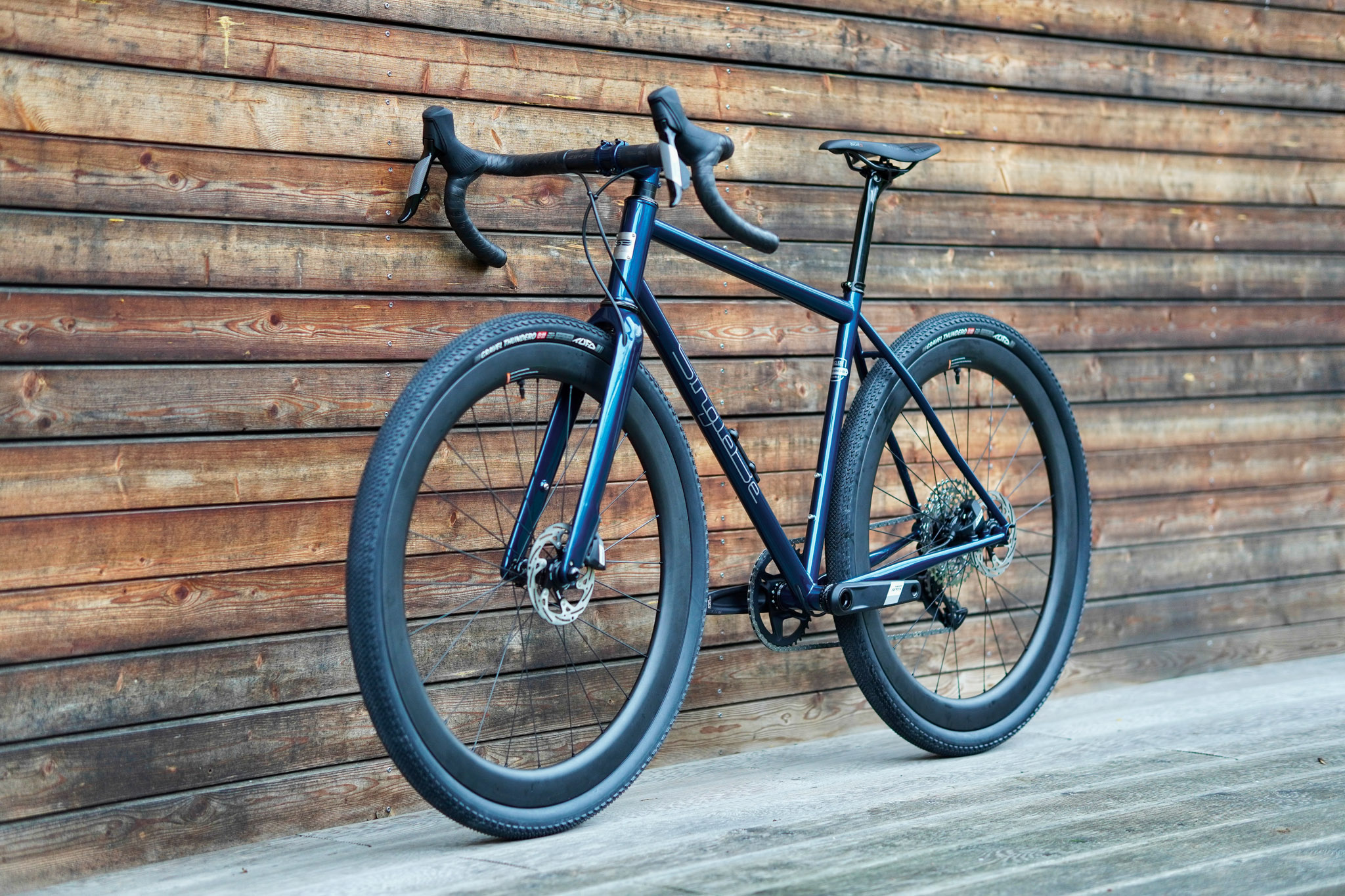

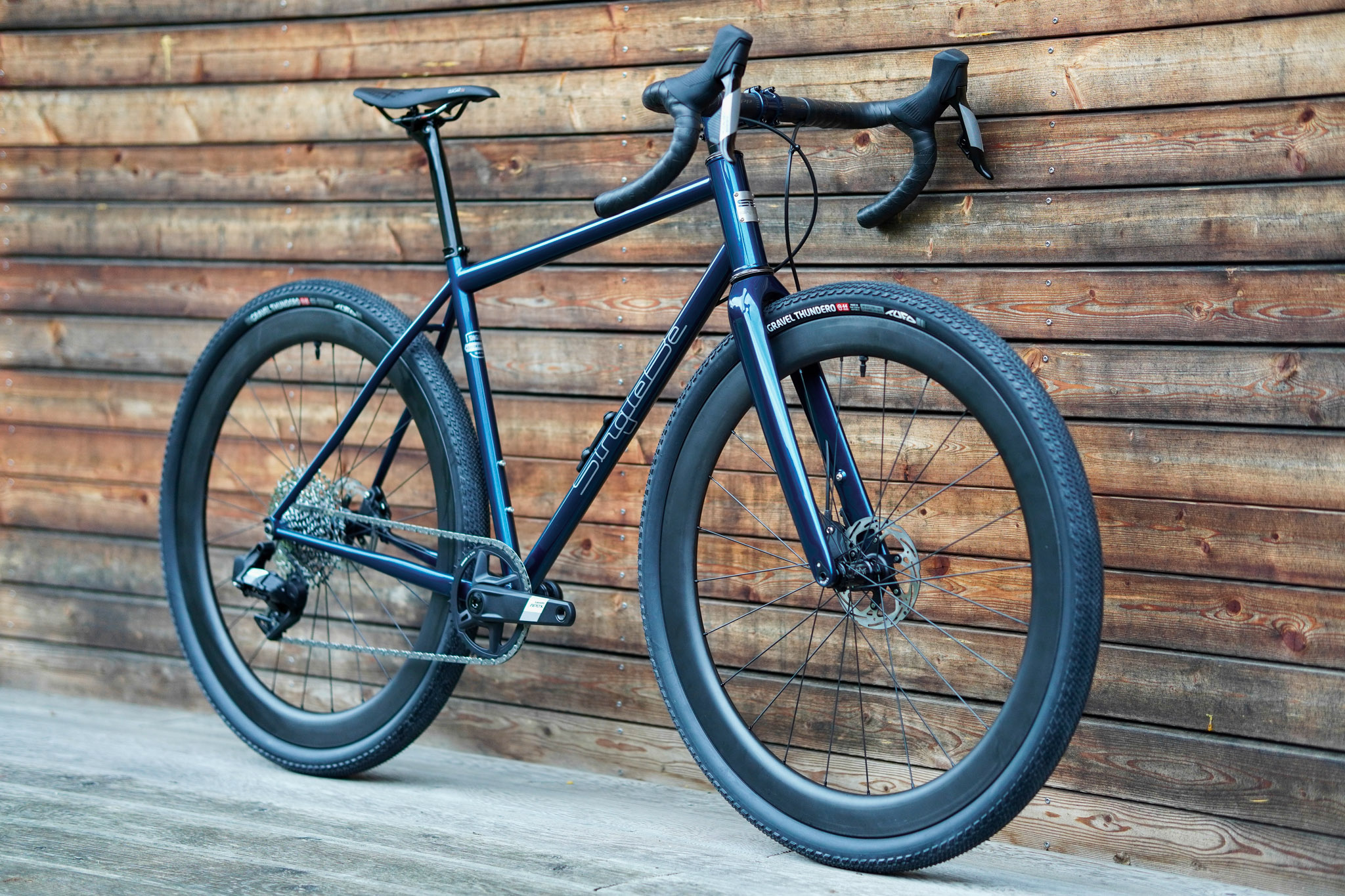

This is sexy looking gravel bike in candy dark blue.
A customer has selected Javax carbon wheels with 50 mm height rims. It looks like monster bike !
Sram Apex AXS is basic groupset from Sram AXS selection, neverthless it works great.
We made custom bikes in Europe, here in Czech Republic and you can customize every detail like color, labels, geo etc..

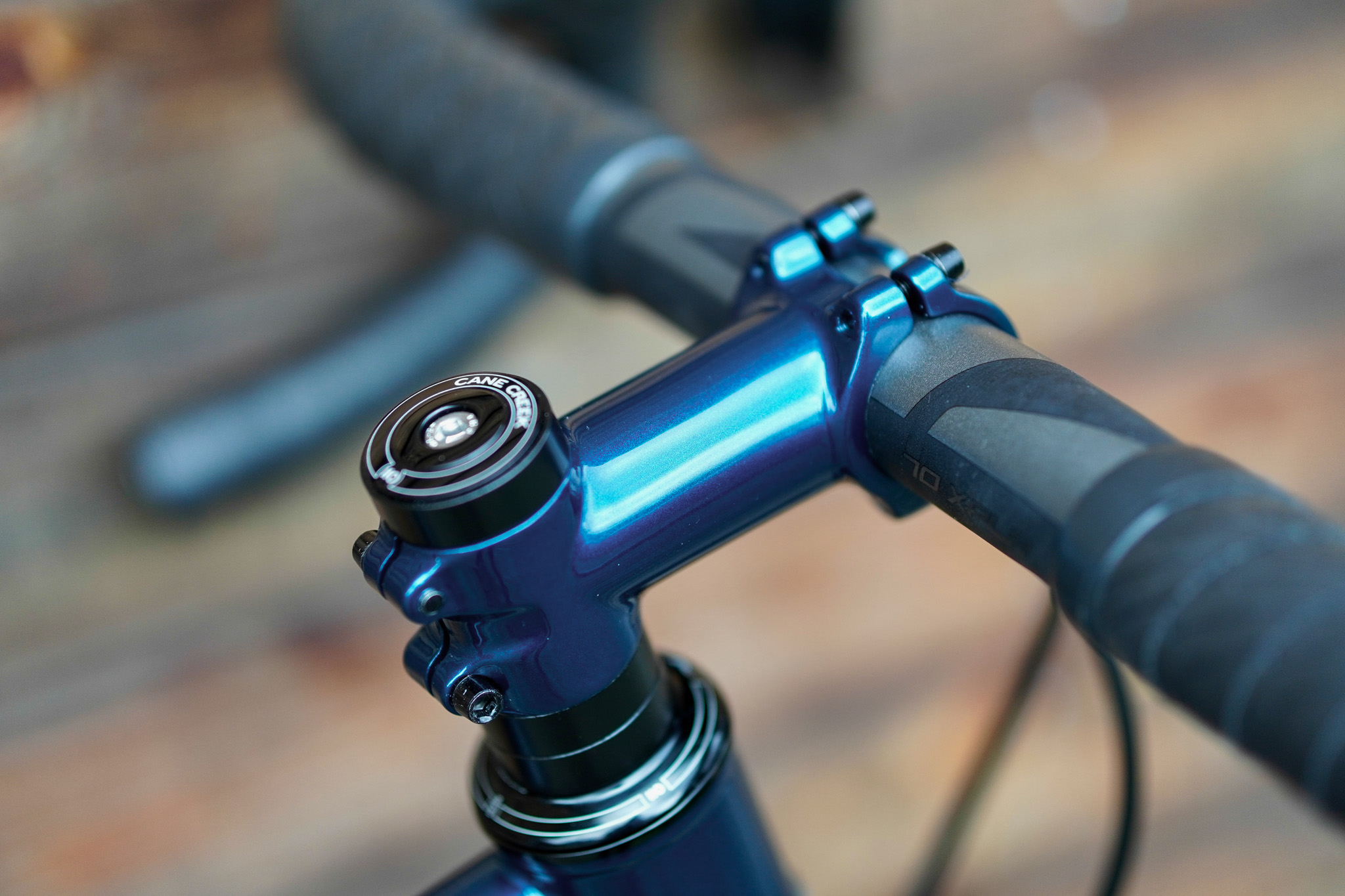

Painted stem to match entire look.
Javax hubs are great for good money and they have nice sound freewheel.
| Frame | Reynolds 853 / Dedacciai Zero Uno |
|---|---|
| Headset | Cane Creek 110 |
| Fork | Trigon RC90FE 100x12 full carbon, internal, FM |
| Brakes | Sram Apex, HRD |

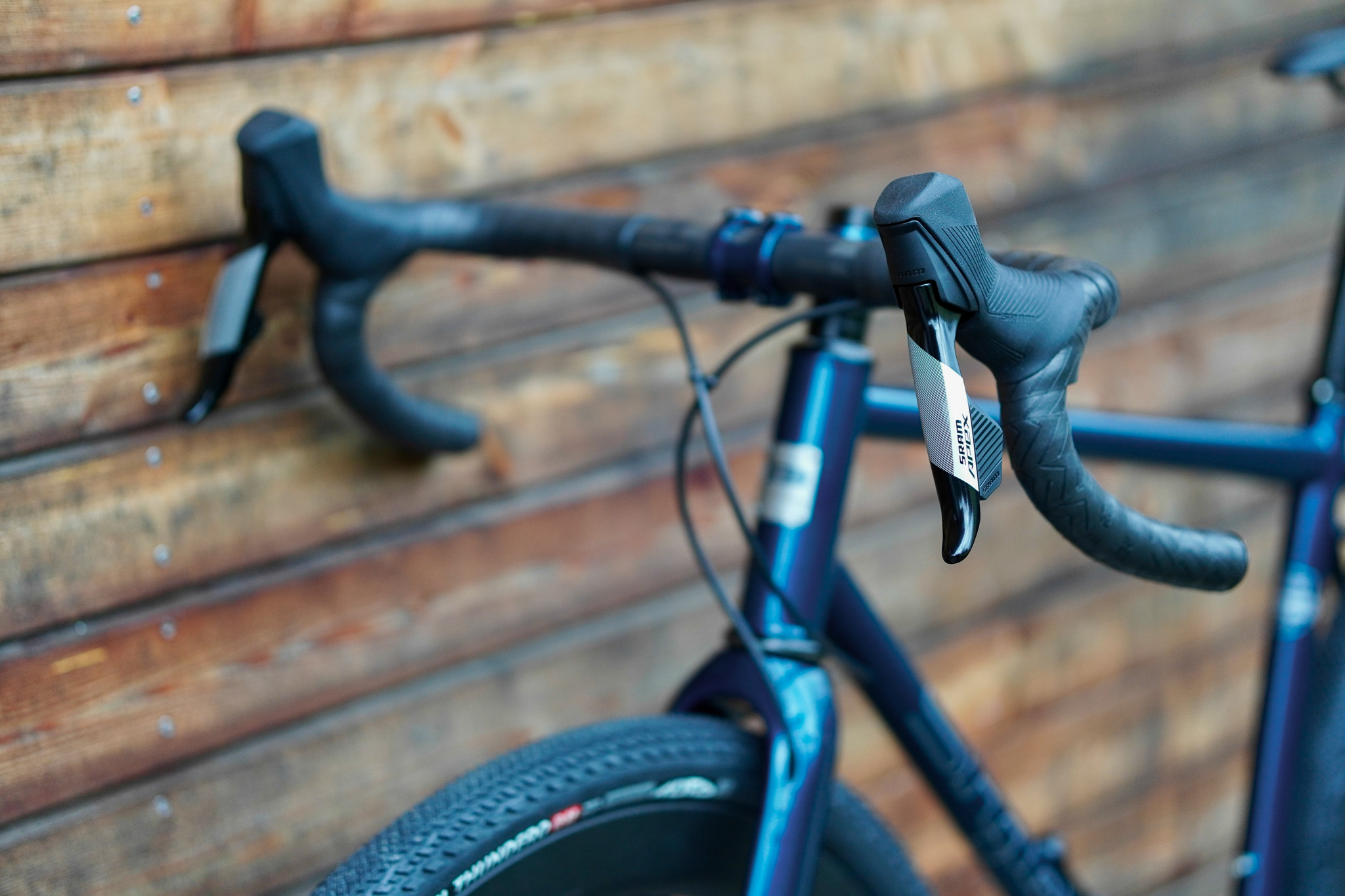

| Shifters | Sram Apex 1x12 AXS |
| RD | Sram Apex AXS 1x12 XPLR |
| Cassette | Sram 10-44 |
| Seatpost | Trigon Carbon no logo 27.2 |

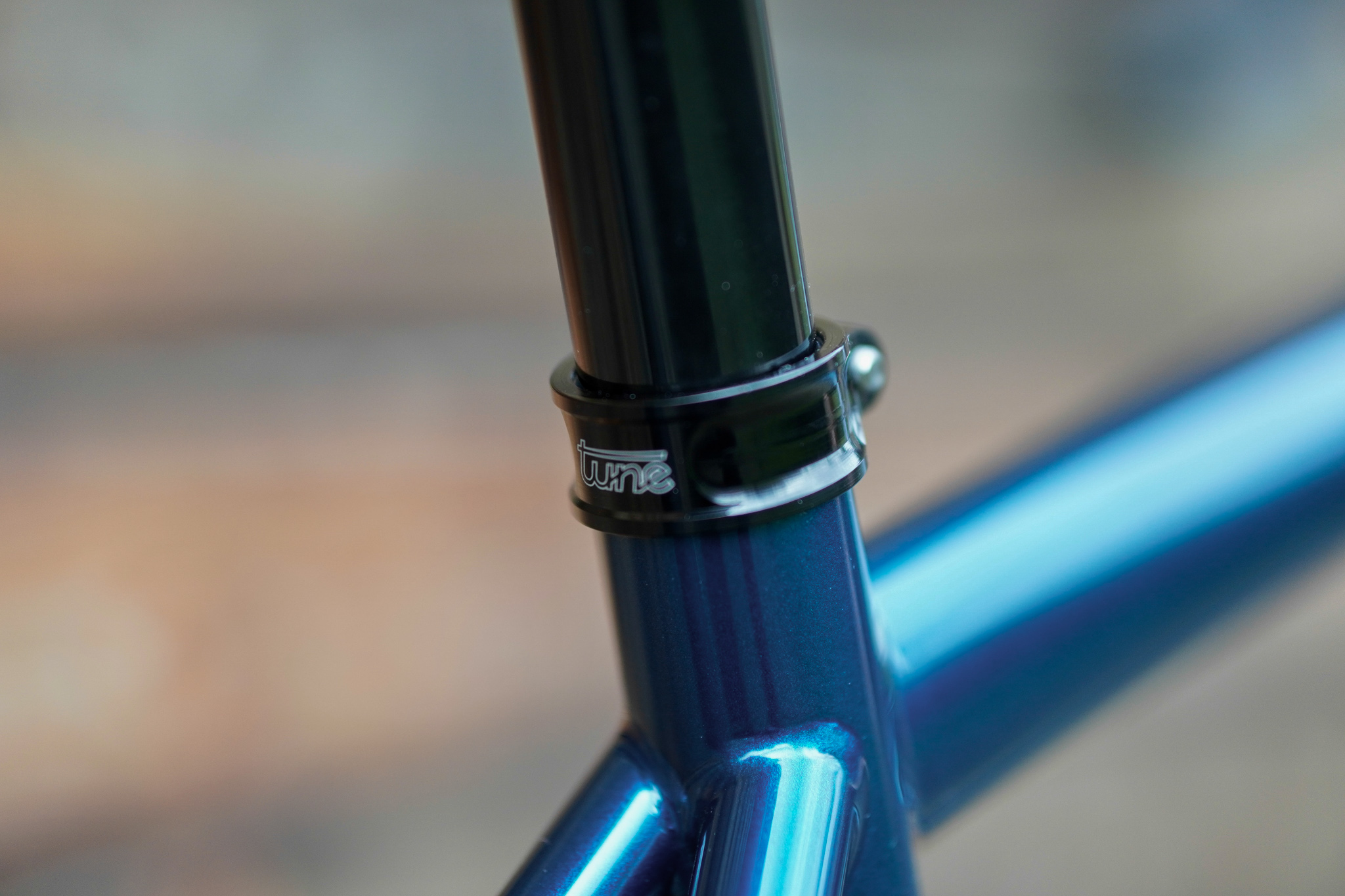

| Seatpost clamp | Tune |
| Handlebars | Zipp |
| Stem | Alu 90x-6 painted |
|---|---|
| Bar tape | Repente |

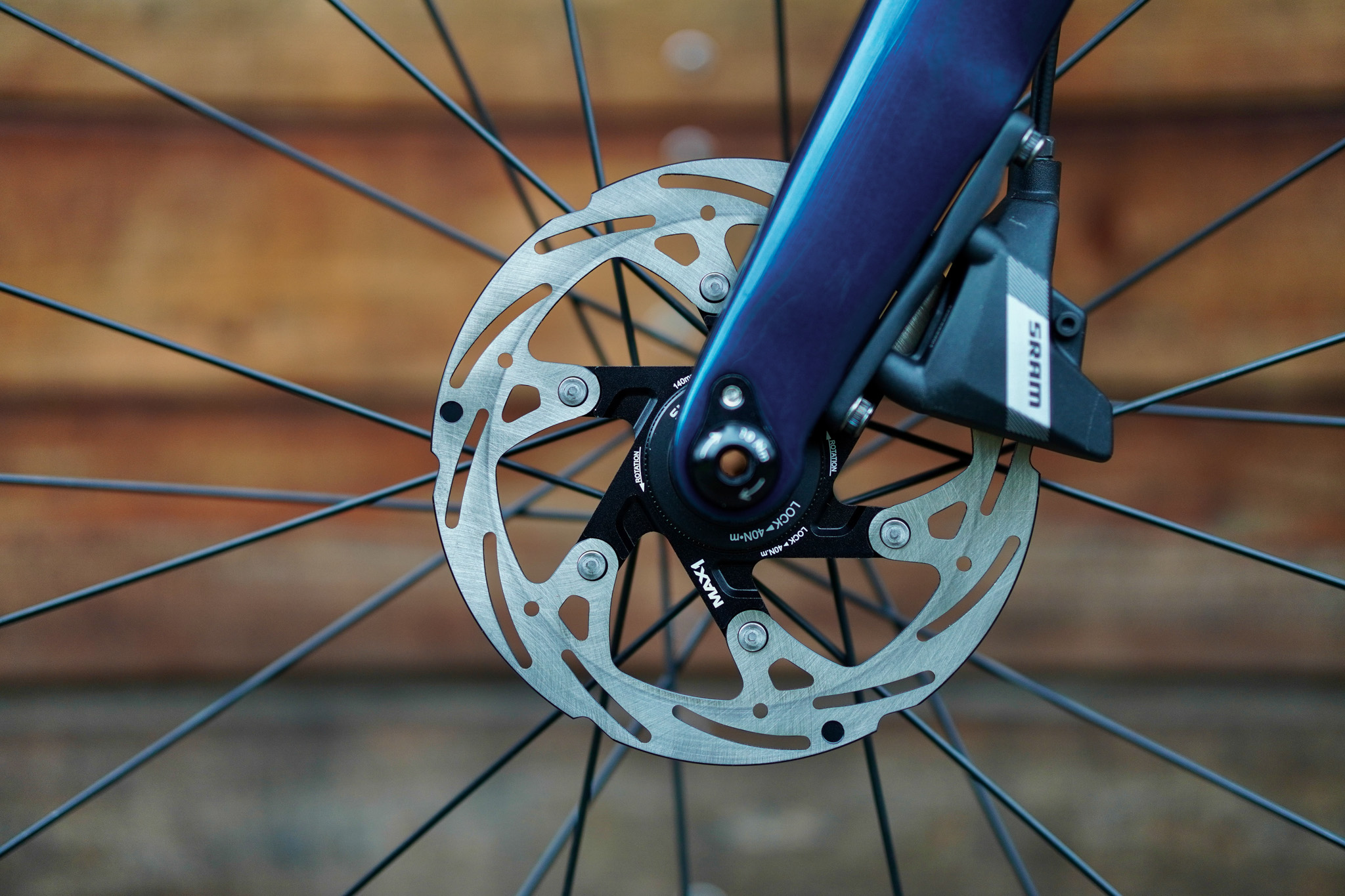

| Front hub | Javax M519 CL SP 28H 100x12 |
| Rotors | Max1 160mm CL |

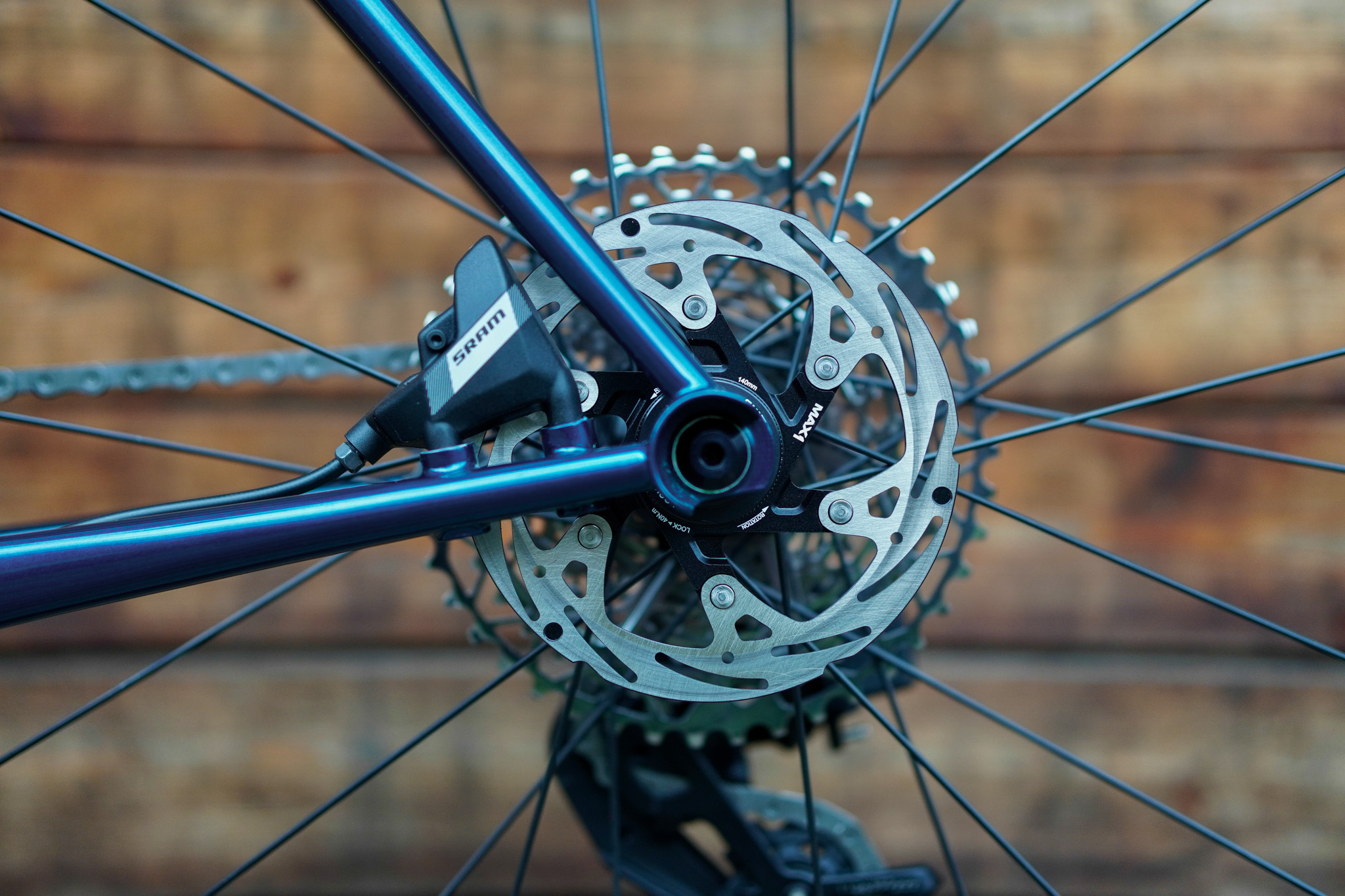

| Rear hub | Javax M519 CL SP 28H 142x12 XDR |
| Tires | Tufo gravel Thundero 700x44C |
| Rims | Javax RC509 Disk 28H 50 mm |

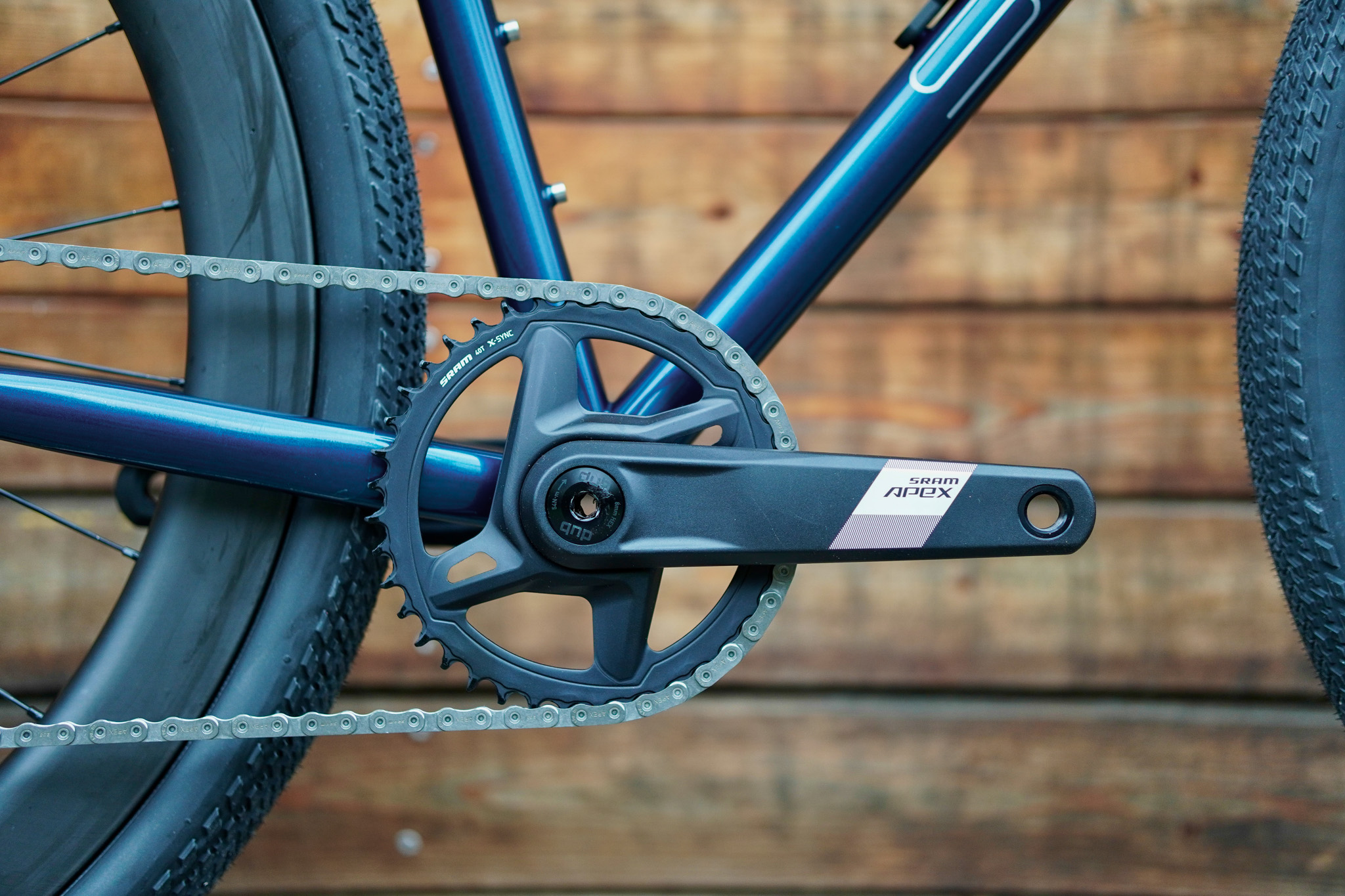

| Crankset | Sram Apex 1, 172,5 40T |

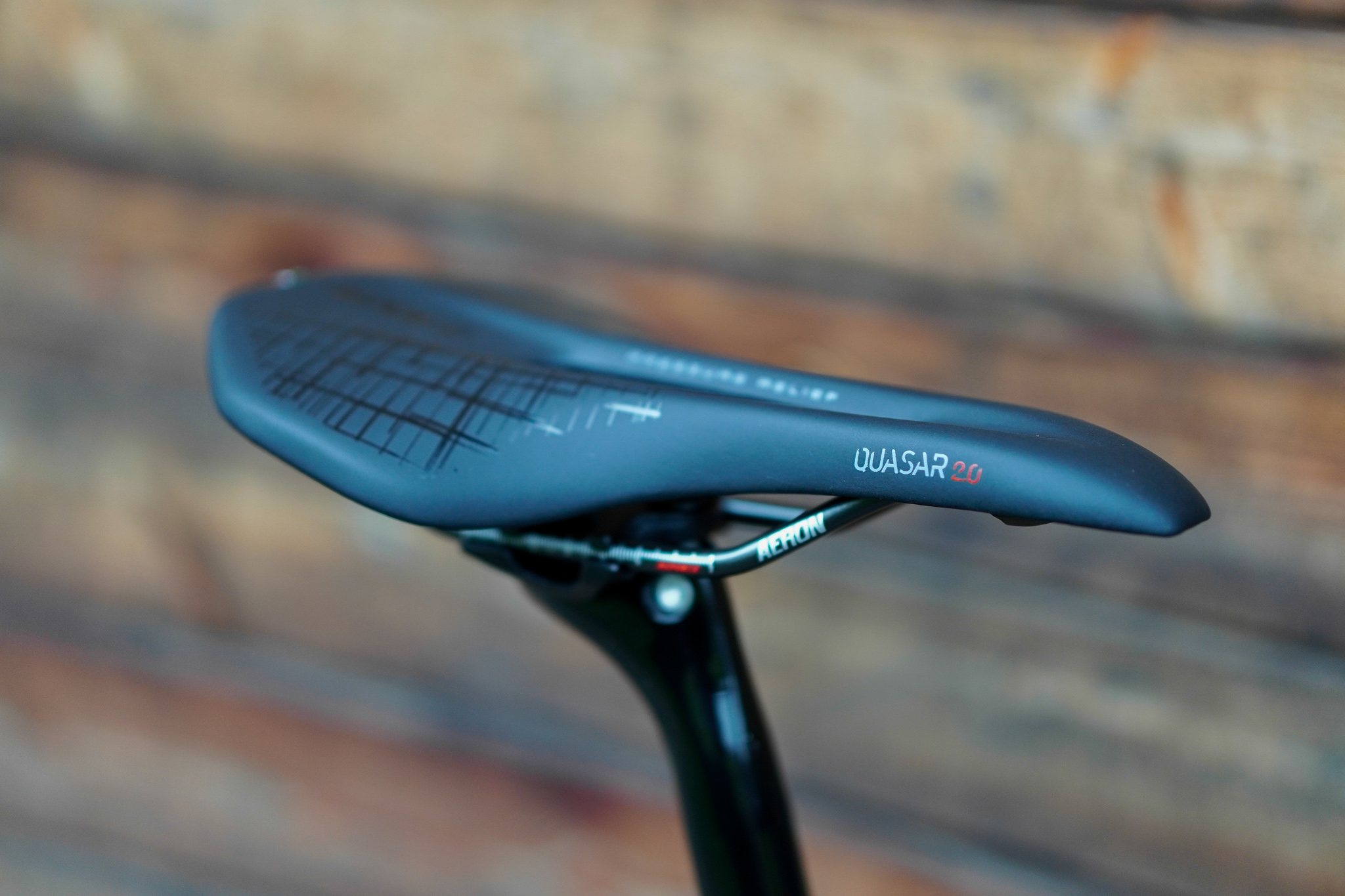

| Saddle | REPENTE Quasar |
| Spokes | Pillar PSR Wing 22 |

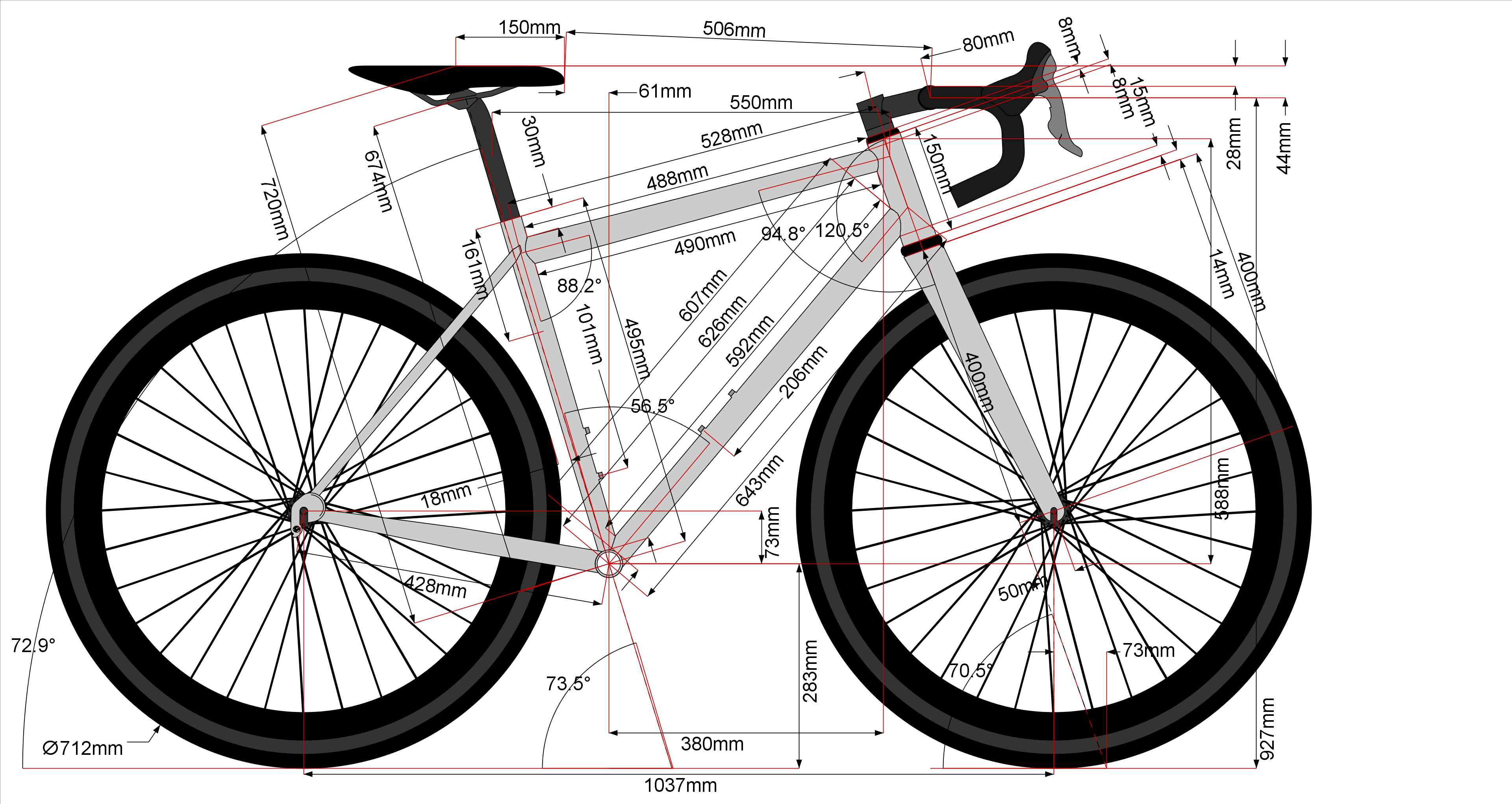

| TTA (B) | 528 mm |
|---|---|
| TTE (C) | 550 mm |
| HT (D) | 150 mm |
| ST (A) | 495 mm |
| CS (E) | 428 mm |
| HA (G) | 70.5° |
| SA (F) | 73.5° |
| BB drop | - 73 mm |
| BB height | 283 mm |
| Fork AC | 400 mm |
| Wheelbase | 1037 mm |
| Reach | 380 mm |
| Stack | 588 mm |
