Higher front for more relaxed position for all day long tours plus shorter and steeper rear for the pedal efficiency.

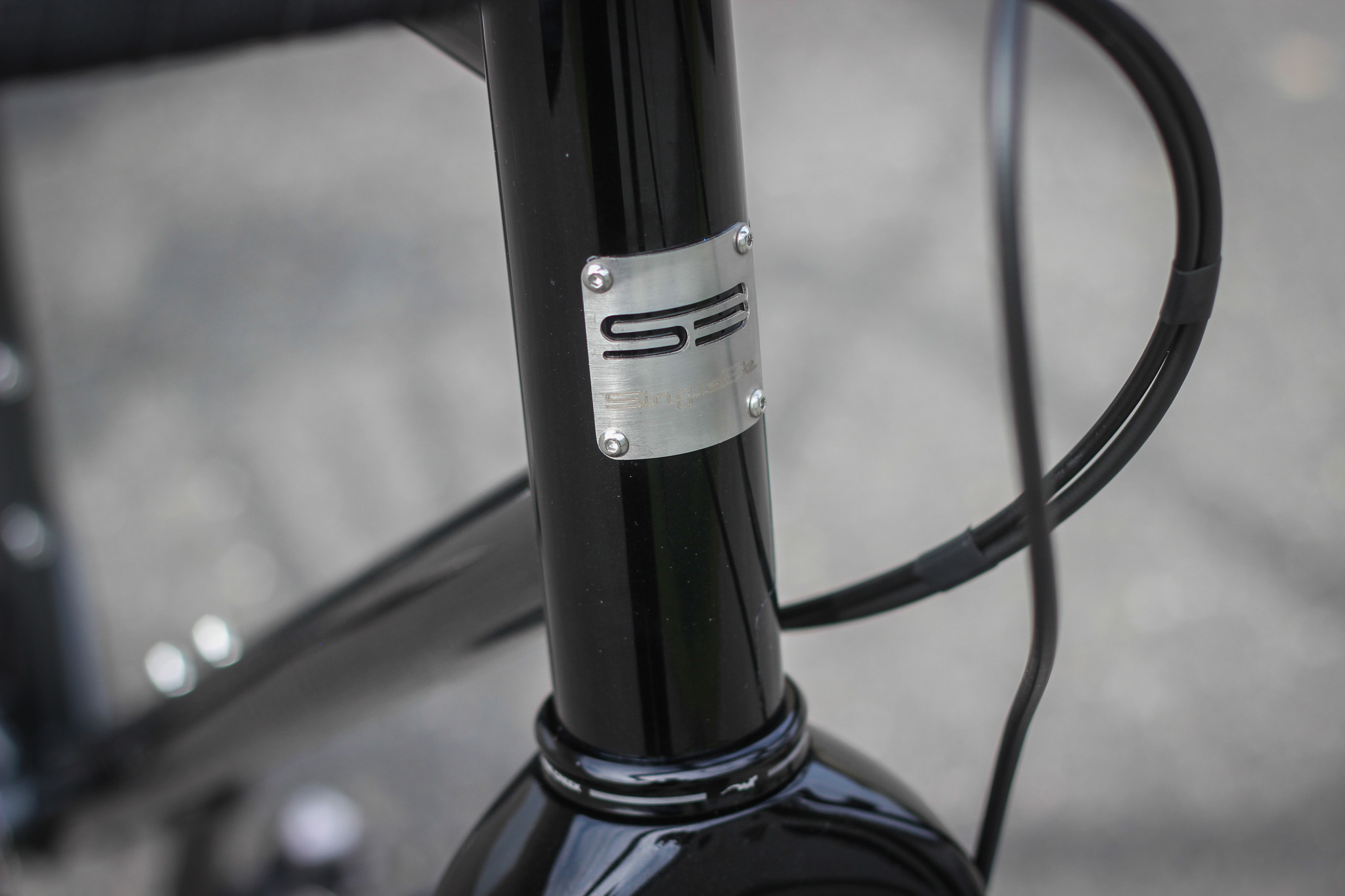

You can even customize the seat tube badge text.
Apart from our hand made frame we also support further czech products like these Tufo gravel tires which are perfect for tubeless setup.

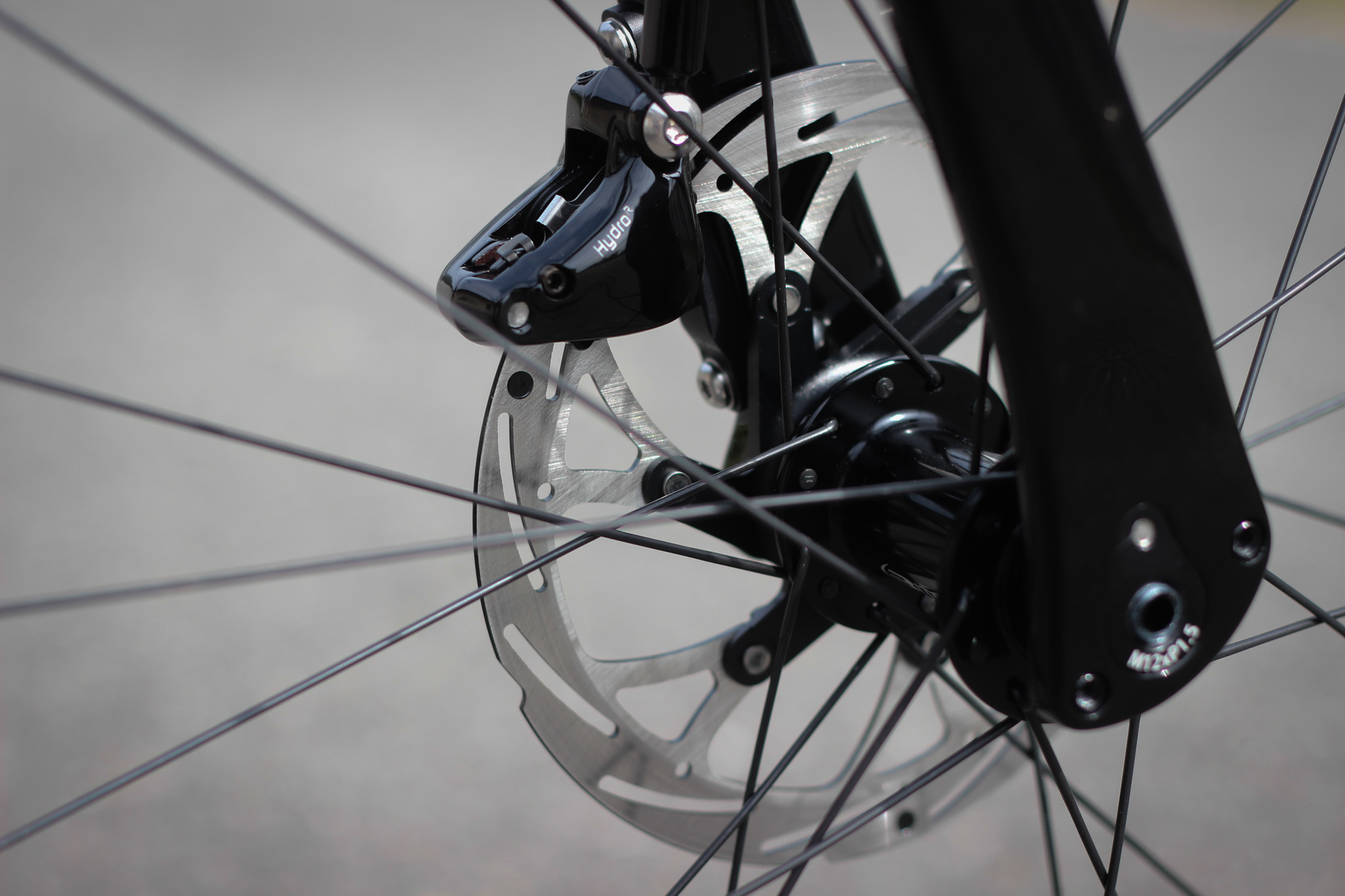

Stainless steel dropout, it means that there is no paint under the head of the thru axle, so no paint damage and no annoying noices.

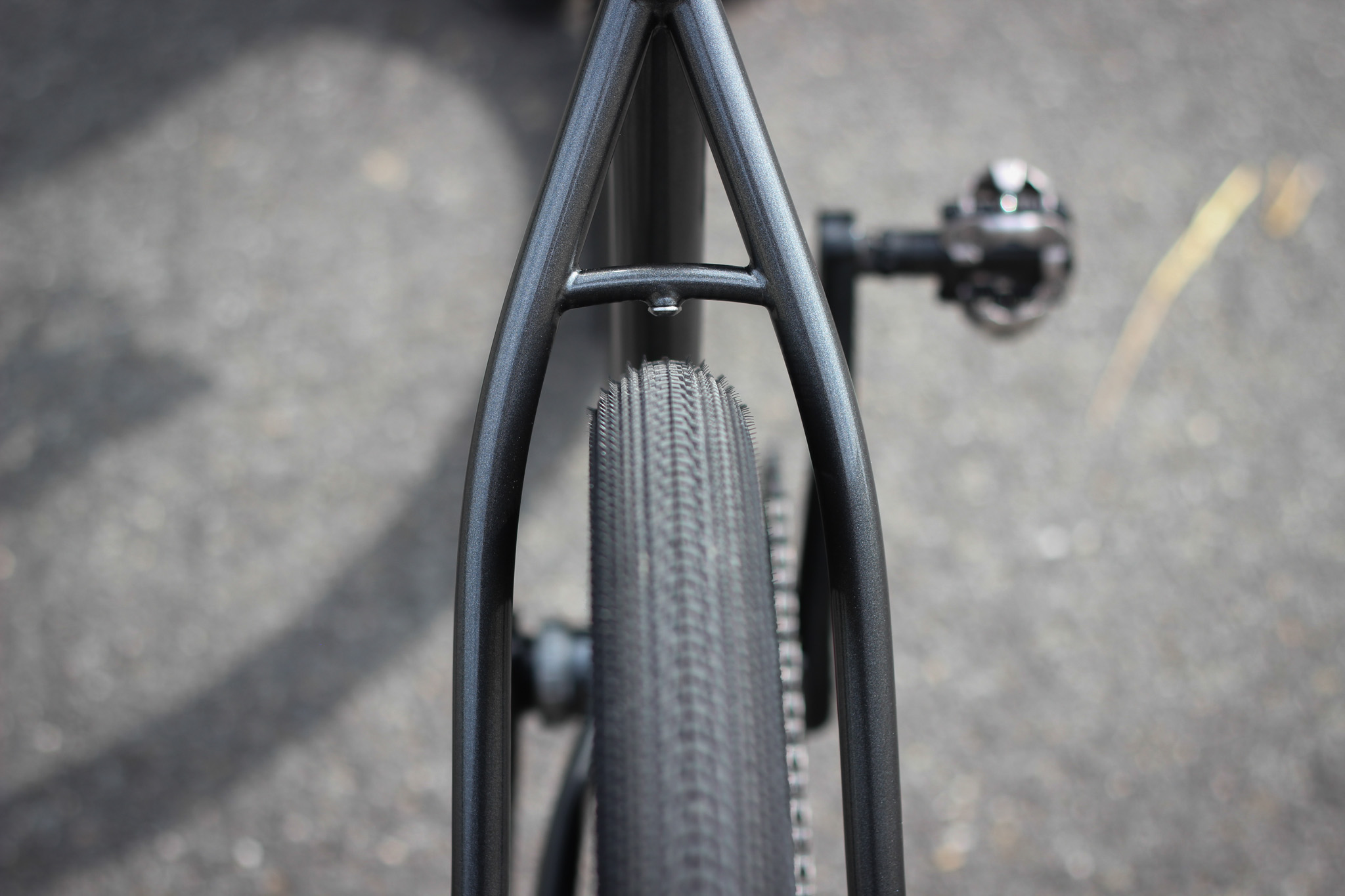

With rear Dedacciai ZeroUno double bent seat stays, there is plenty of tire clearance. Also we have added some almost invisible mounts for rear rack and fenders.
One of the best groupset for gravel bikes – Sram Rival 1 – very reliable parts.
| Frame | Reynolds 853 / Dedacciai ZeroUno stays |
|---|---|
| Headset | Cane Creek 40 |
| Fork | Trigon RC93FE |
| Brakes | Sram Rival 1, FM |
| Brake rotors | Javax DC-01, CL, 160 mm |
| Shifting | Sram Rival 1 |
| RD | Sram Rival 1, long cage, Type 3 |
| Cassette | Sram GX 10-42 |
| Chain | Sram |
| Seatpost | Trigon carbon, custom no paint |
| Bars | Ritchey Butano Comp 46 |
| Stem | Ritchey 4-axis 90mmx6 |
|---|---|
| Bar tape | Ciclovation bar tape |
| Front hub | Bitex BX106F 24H CL |
| Rear hub | BItex BX106R 28H CL XD |
| Tires | Tufo Thundero/Speedero 700x40C, kevlar, TL |
| Tubes | tubeless system |
| Rims | Javax RX353 24/24H carbon |
| Spokes | Pillar PSR 2018 TB, j-bend |
| Crankset | Sram Rival 1, 42T, 172.5 |
| Saddle | Fabric Scoop Schallow |
| Weight | 9.1 kg without pedals |

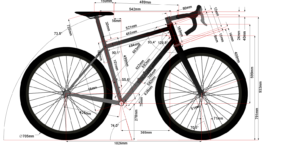

| TTA (B) | 521 mm |
|---|---|
| TTE (C) | 542 mm |
| HT (D) | 160 mm |
| ST (A) | 490 mm |
| CS (E) | 425 mm |
| HA (G) | 70.5° |
| SA (F) | 74° |
| BB drop | - 75 mm |
| BB height | 278 mm |
| Fork AC | 400 mm |
| Wheelbase | 1026 mm |
| Stack | 599 mm |
| Reach | 368 mm |
