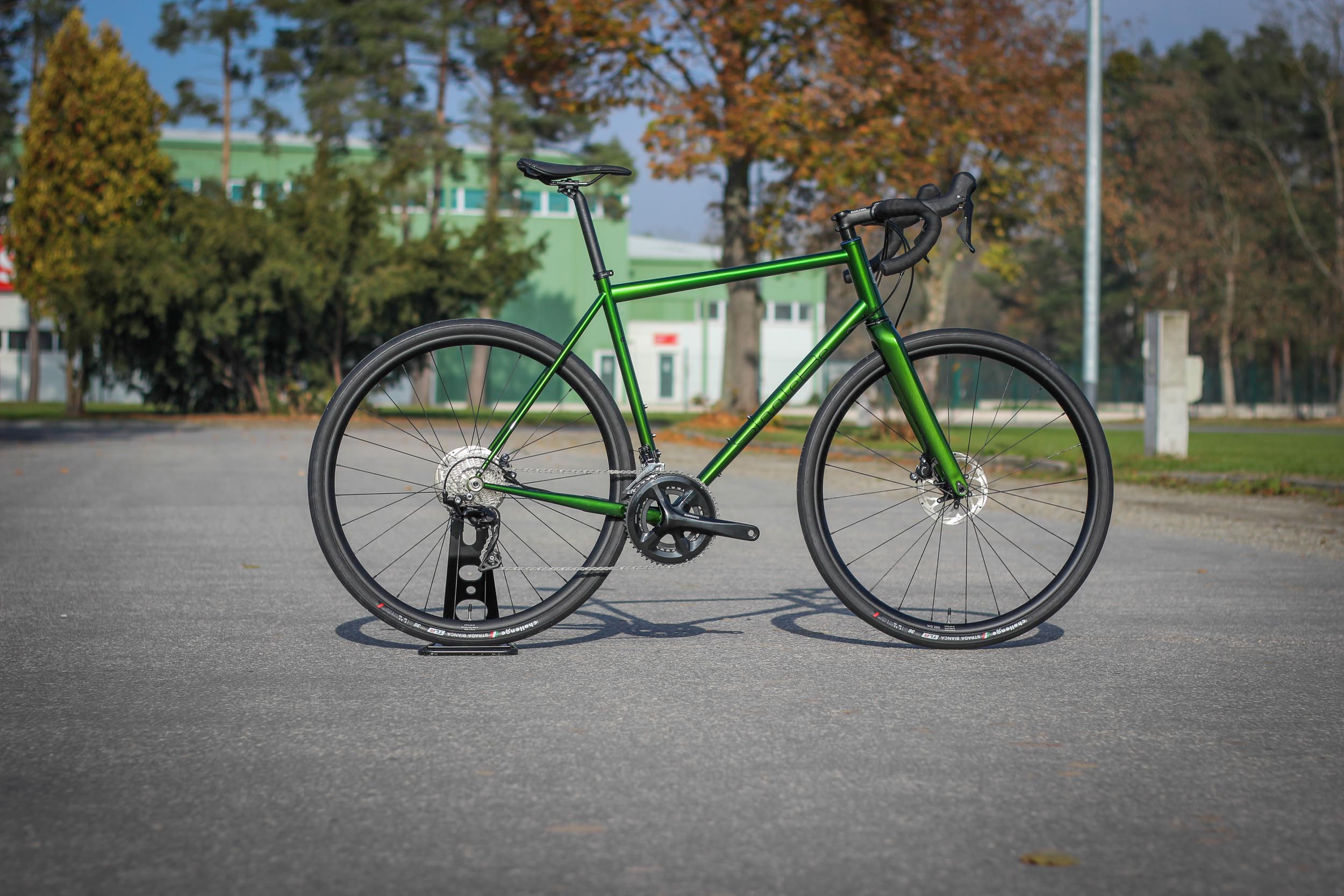

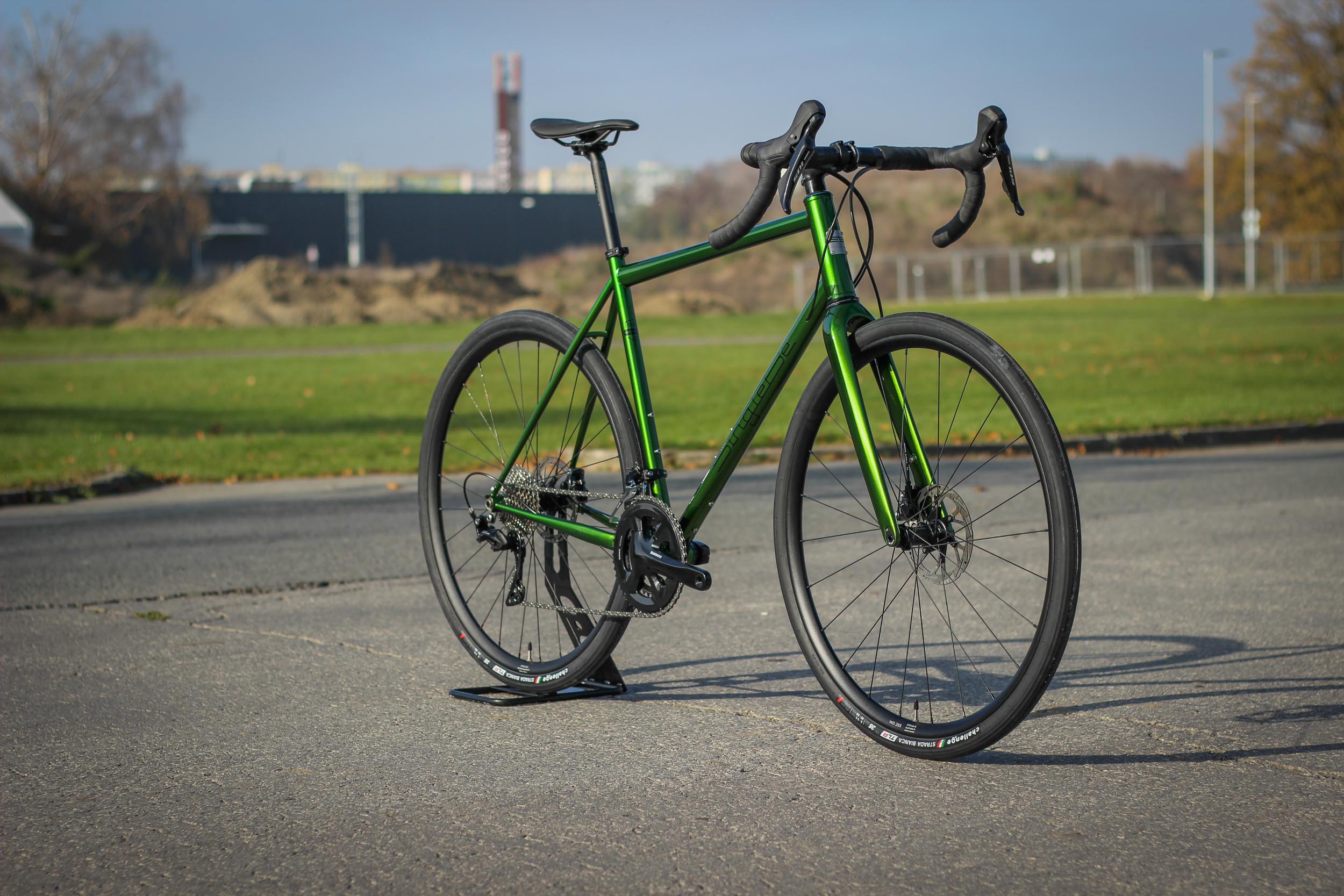

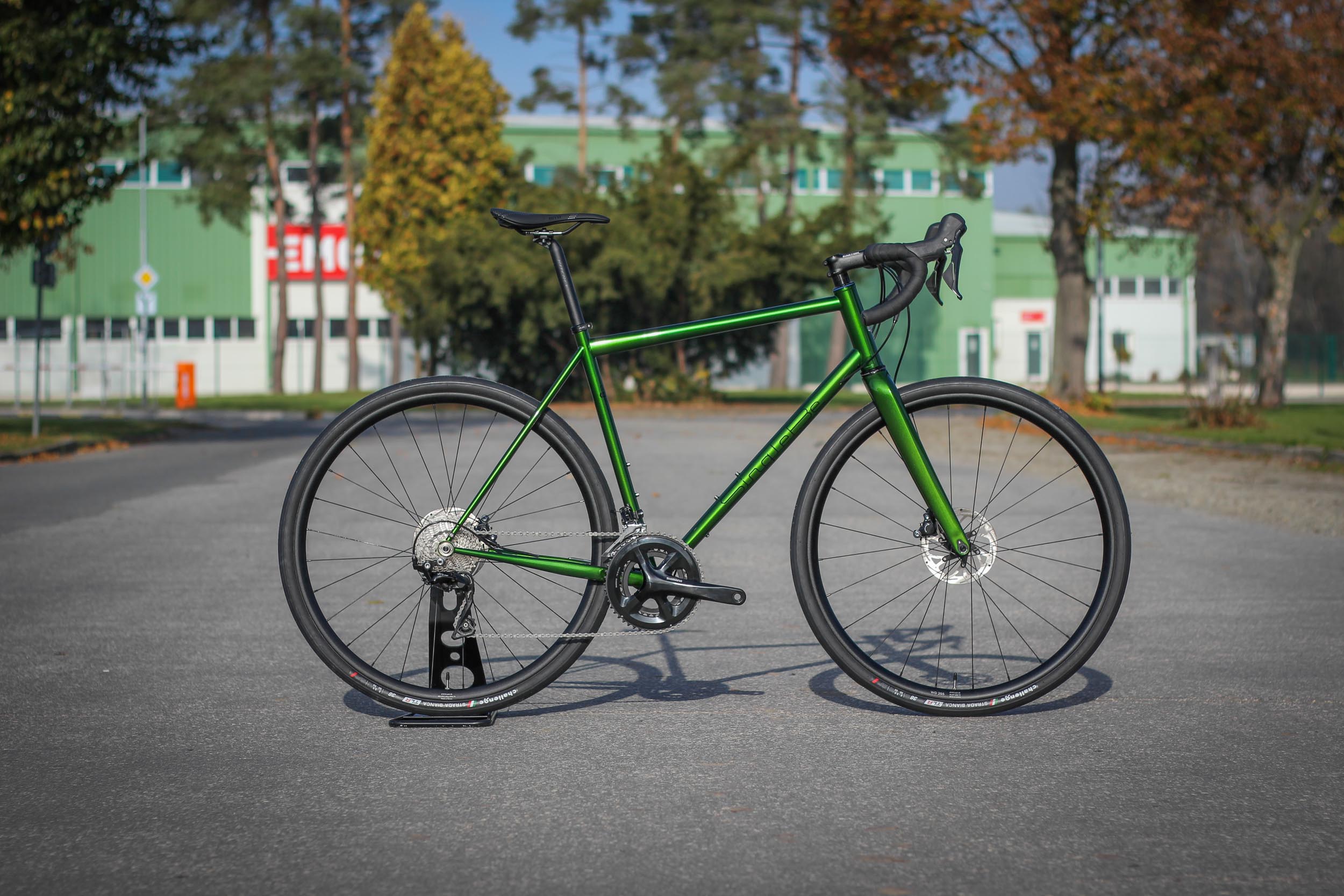

Very reliable steel gravel/allroad bike with Shimano 105 R7000 groupset.
This gravel bike is equipped with carbon fork Trigon RC90Fe with internal cable routings and option to mount fender.
Internal cable routings for all the hoses/cables.
Shimano 105 2×11 R7000 groupset is very reliable with gears 11-34 and 50/36 in front.

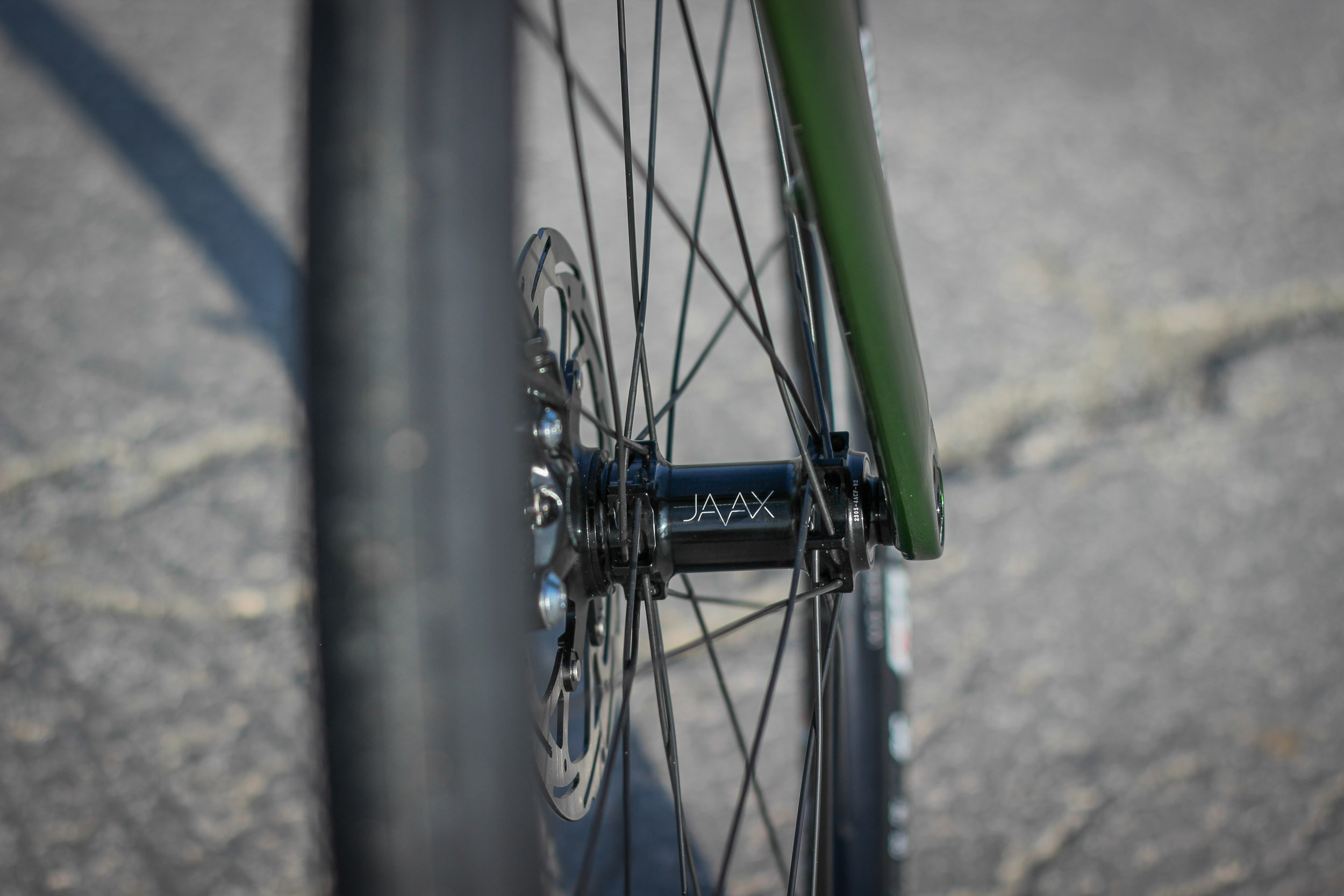

We used to use quality components for reasonable prices like for example this wheels Javax GL519 wiht 24/28 holes and tubeless ready.

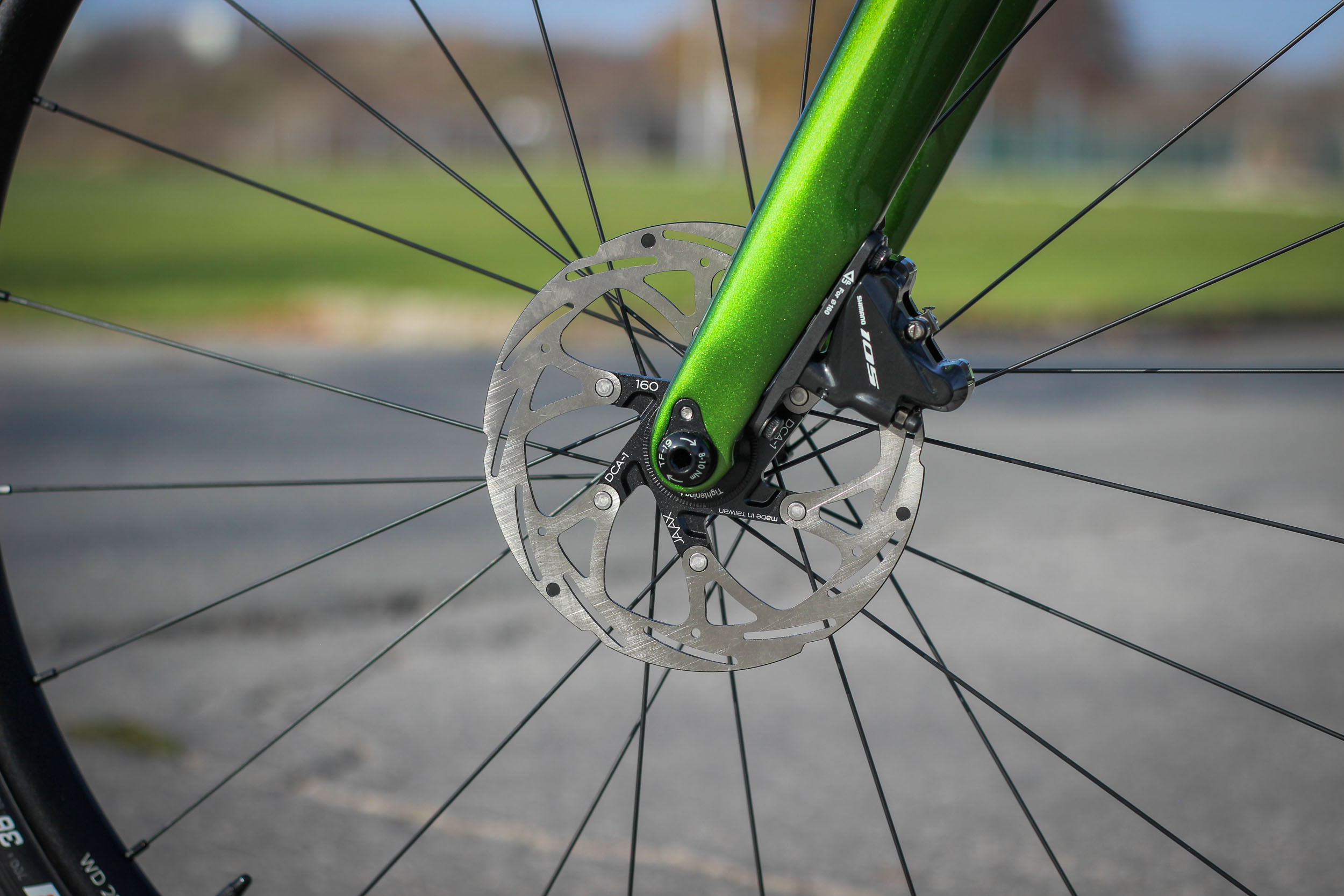

Good rotors as well with aluminium holder, 160 mm for both front and rear.

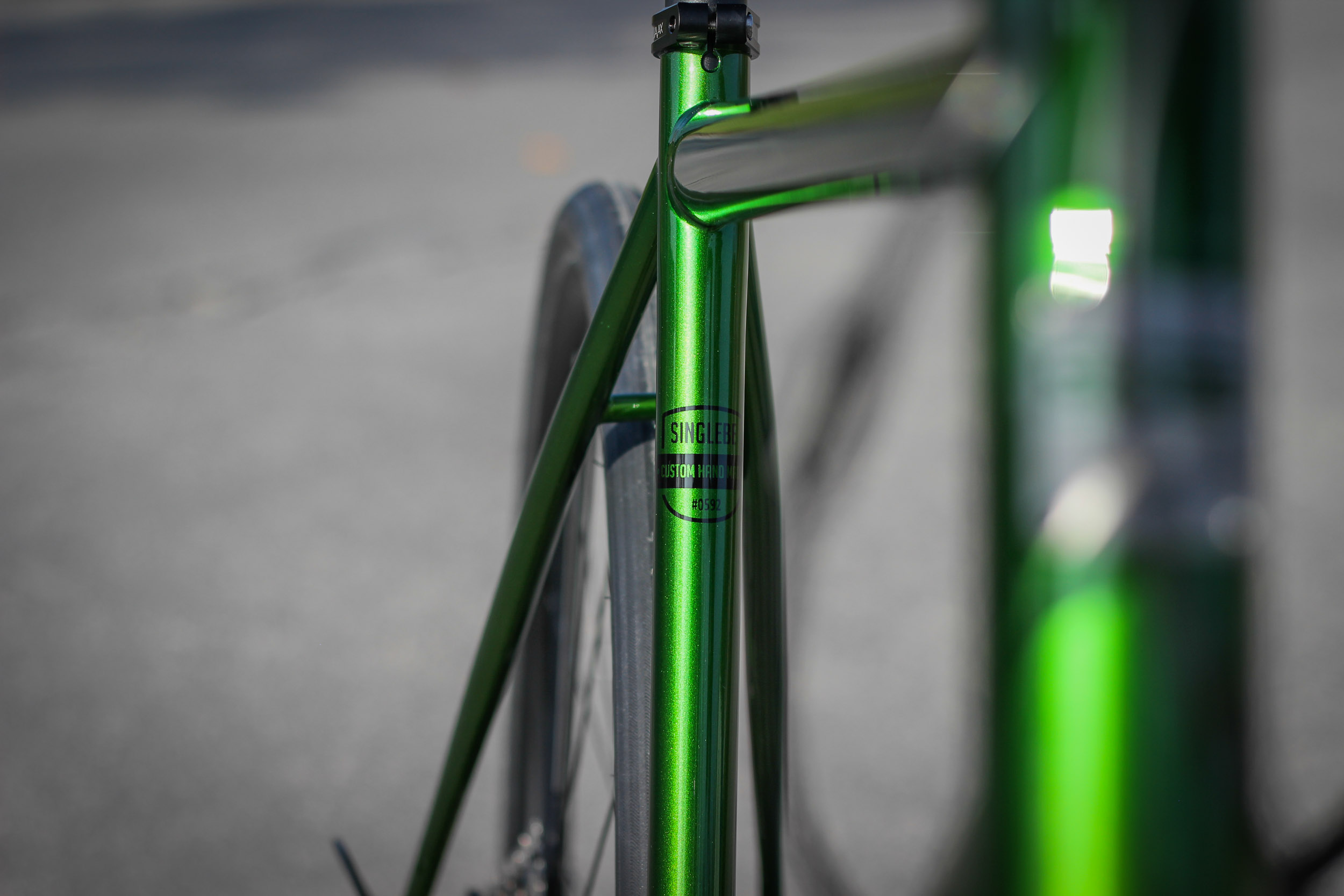

| Frame | Reynolds 853 frame, 725 stays |
|---|---|

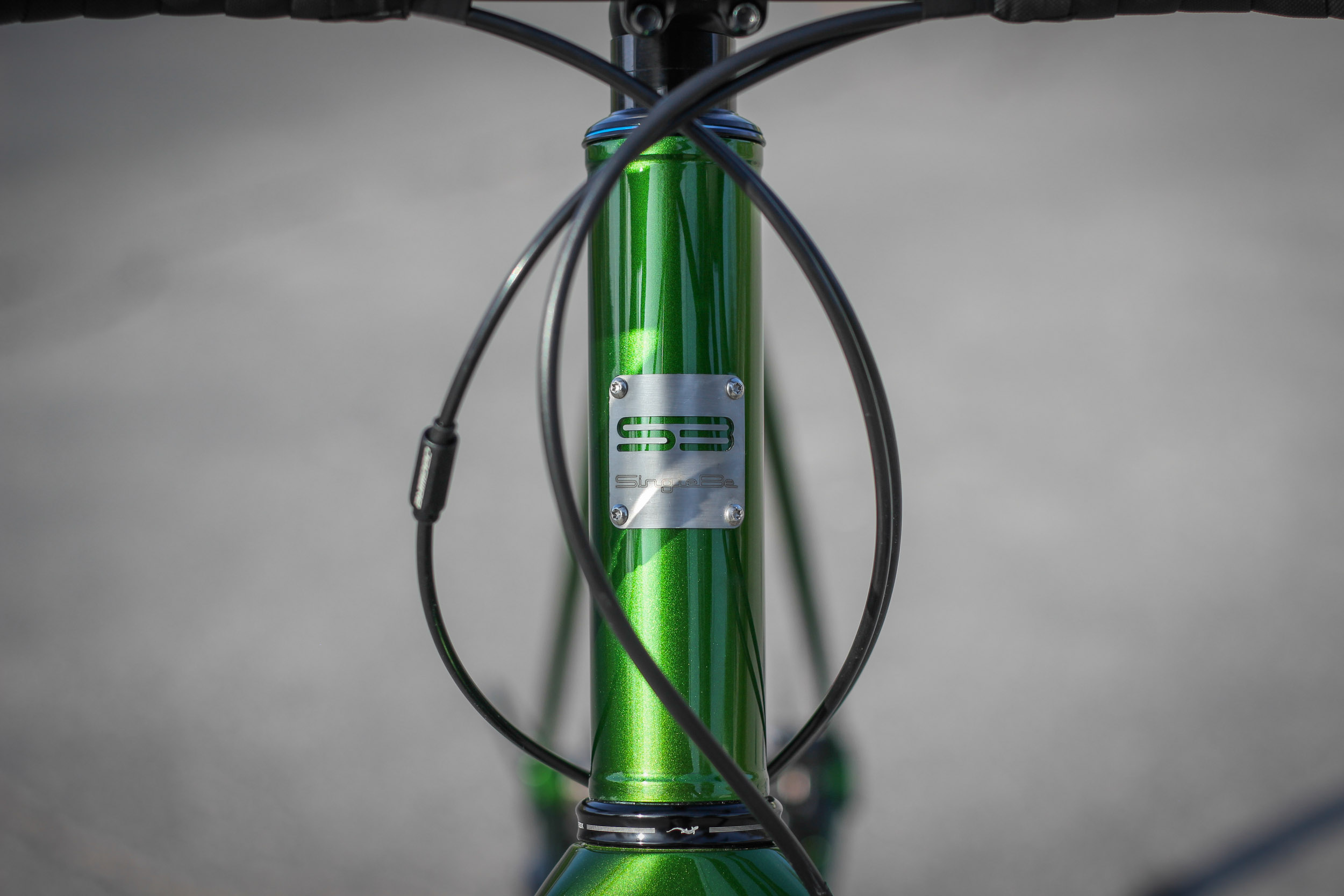

| Headset | Cane Creek 40 ZS/EC44/40 |
| Fork | Trigon RC90FE 100x12 full carbon, internal, FM |
| Brakes | Shimano 105 BR-R7070 FM |

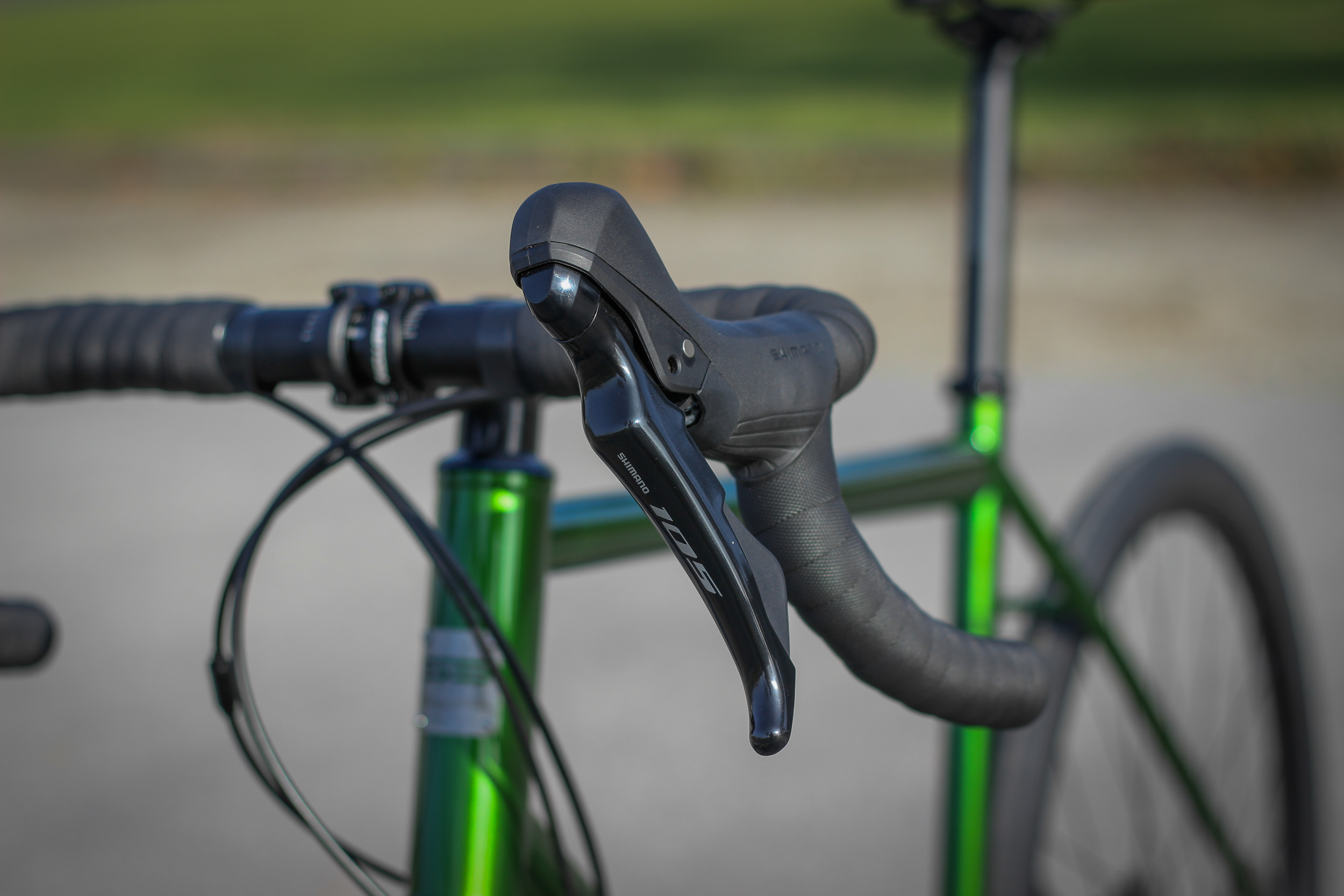

| Shifters | Shimano 105 2x11 ST-R7020 |
| RD | Shimano 105 RD-R7000 |
| FD | Shimano 105 FD-R7000 |
| Casette | Shimano 105 CS-R7000 11-34 |
| Seatpost | Ritchey comp. 27,2x400 |
| Seatpost clamp | Javax 30.0 |

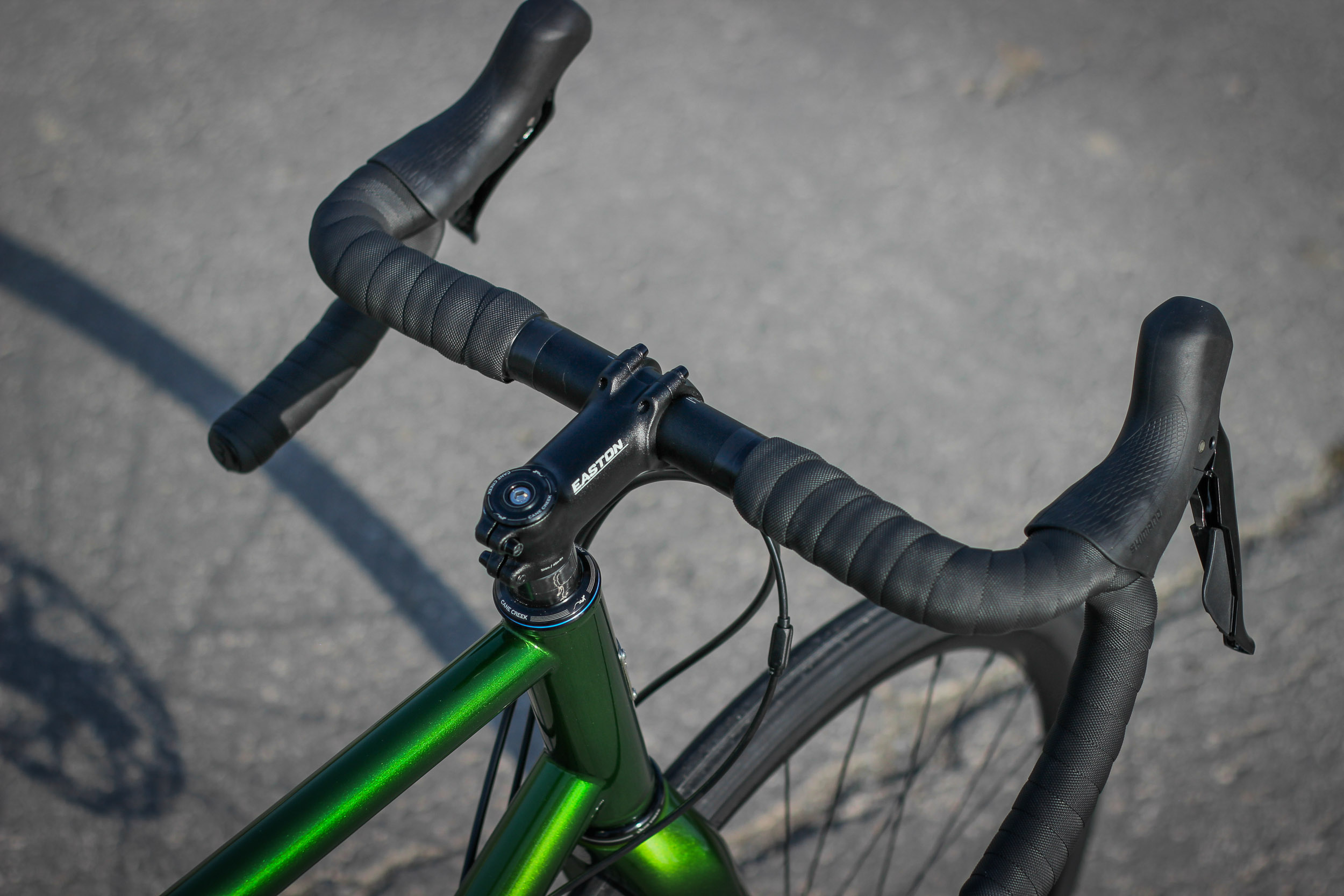

| Handlebars | gravel alu 440mm, 12deg. flair |
| Stem | EASTON EA-70 80 mm |
| Bar tape | BBB |
| Front hub | zaplet.kola JAVAX GL519 24/28 |
|---|---|

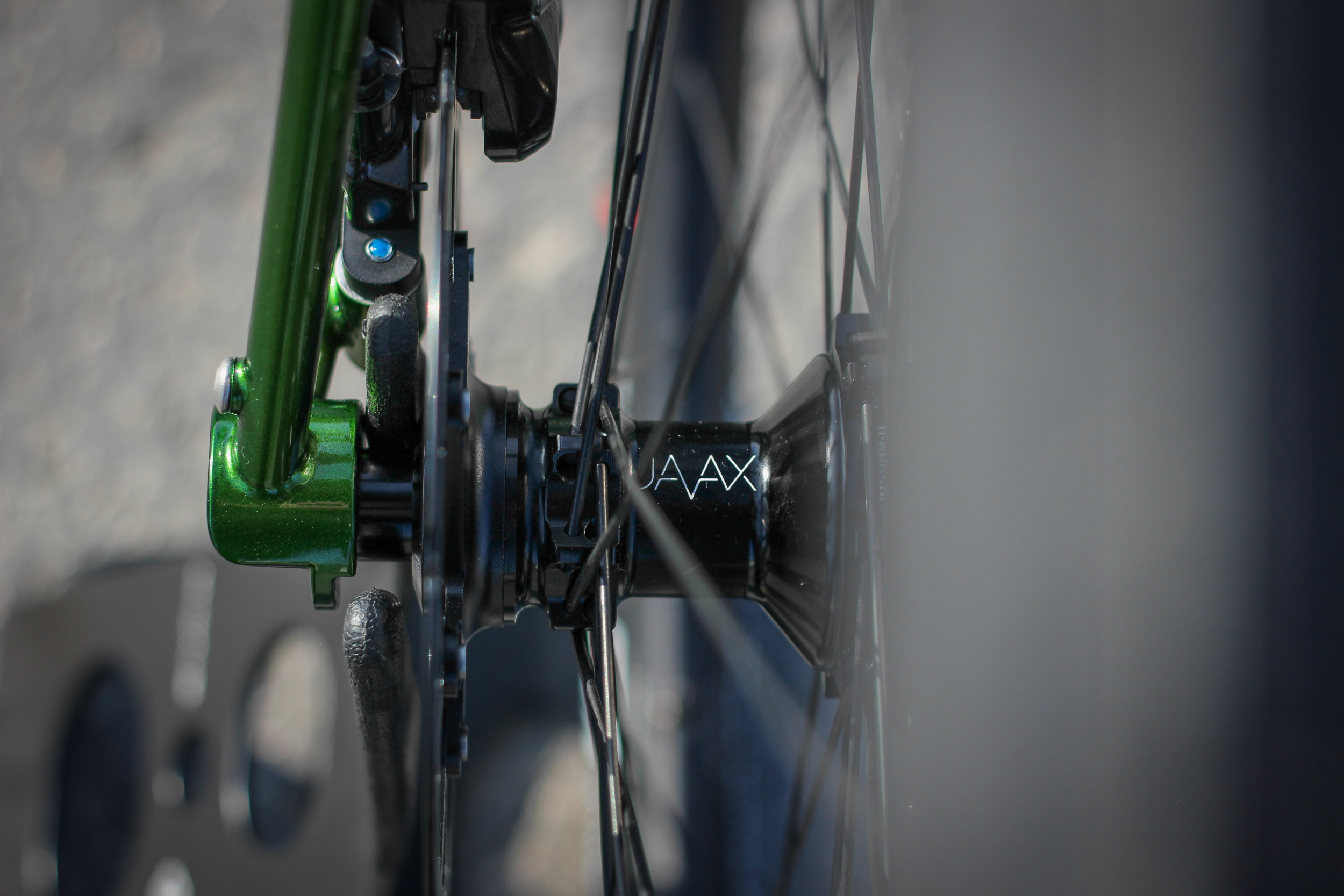

| Rear hub | zaplet.kola JAVAX GL519 24/28 |
| Tires | challenge strada bianca TLR 700x36C |
| Rims | zaplet.kola JAVAX GL519 24/28 |

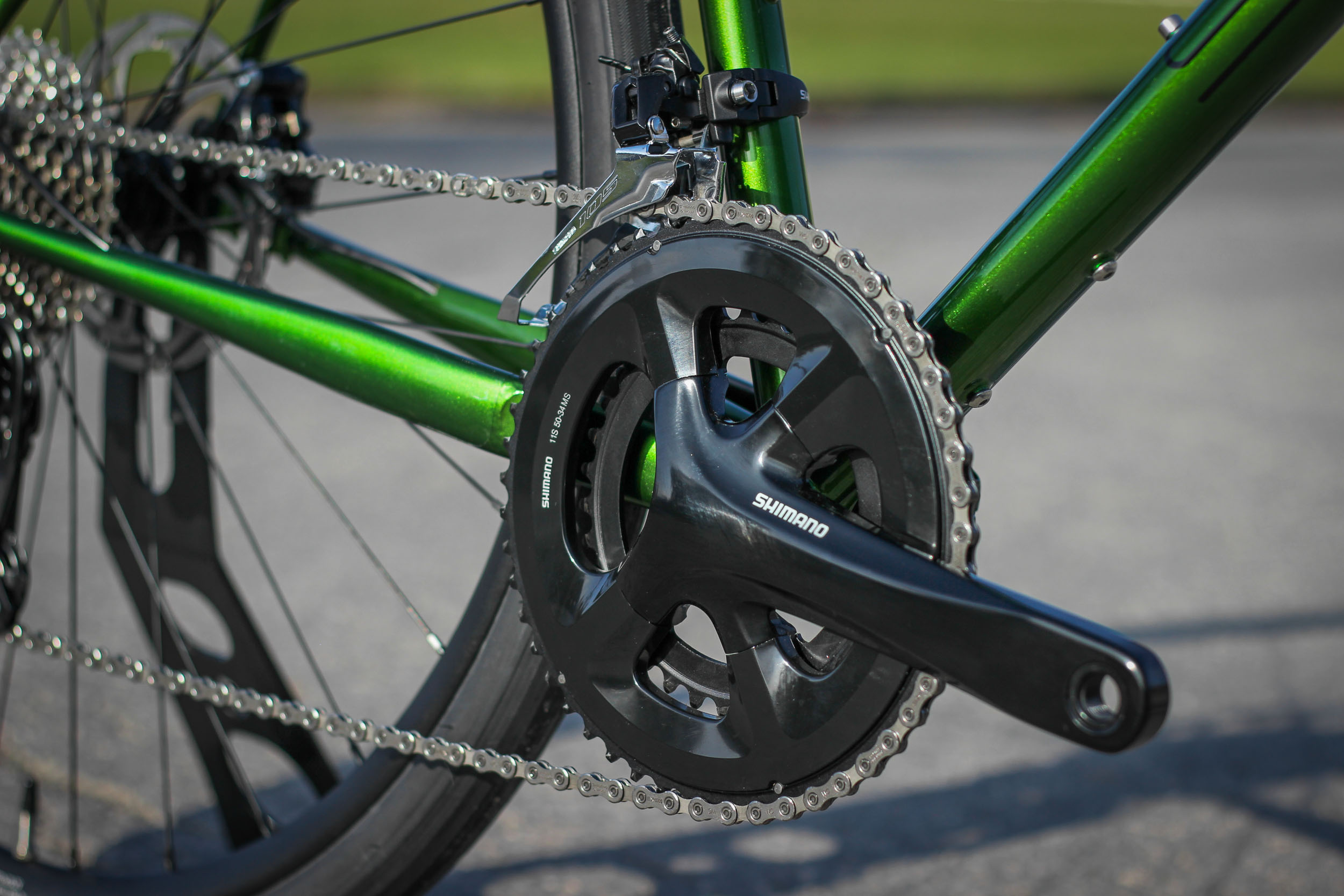

| Crankset | Shimano Shimano FC-RS510 50-34 172.5 |

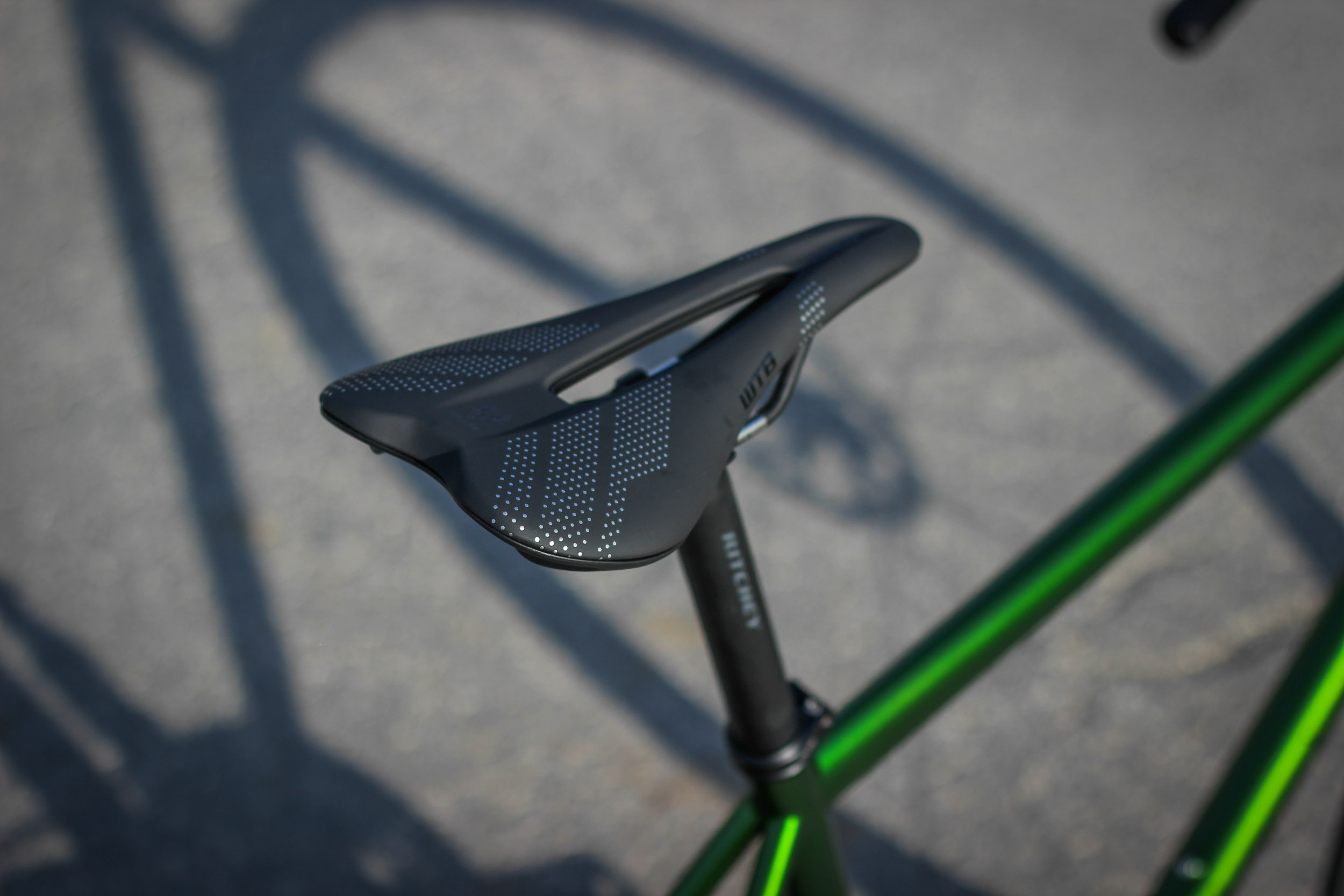

| Saddle | WTB Gravelier stainless steel |
| Spokes | Pillar SPR TB 2018 2,0/1,8 |
| Weight | 9.8 kg without pedals |
| Color | candly green metallic |
| Tire clearance | 700x42C |
| Number of bottle holders | 3 |
| Cable routings | internal |
| Mounting options for rack/fenders | yes |

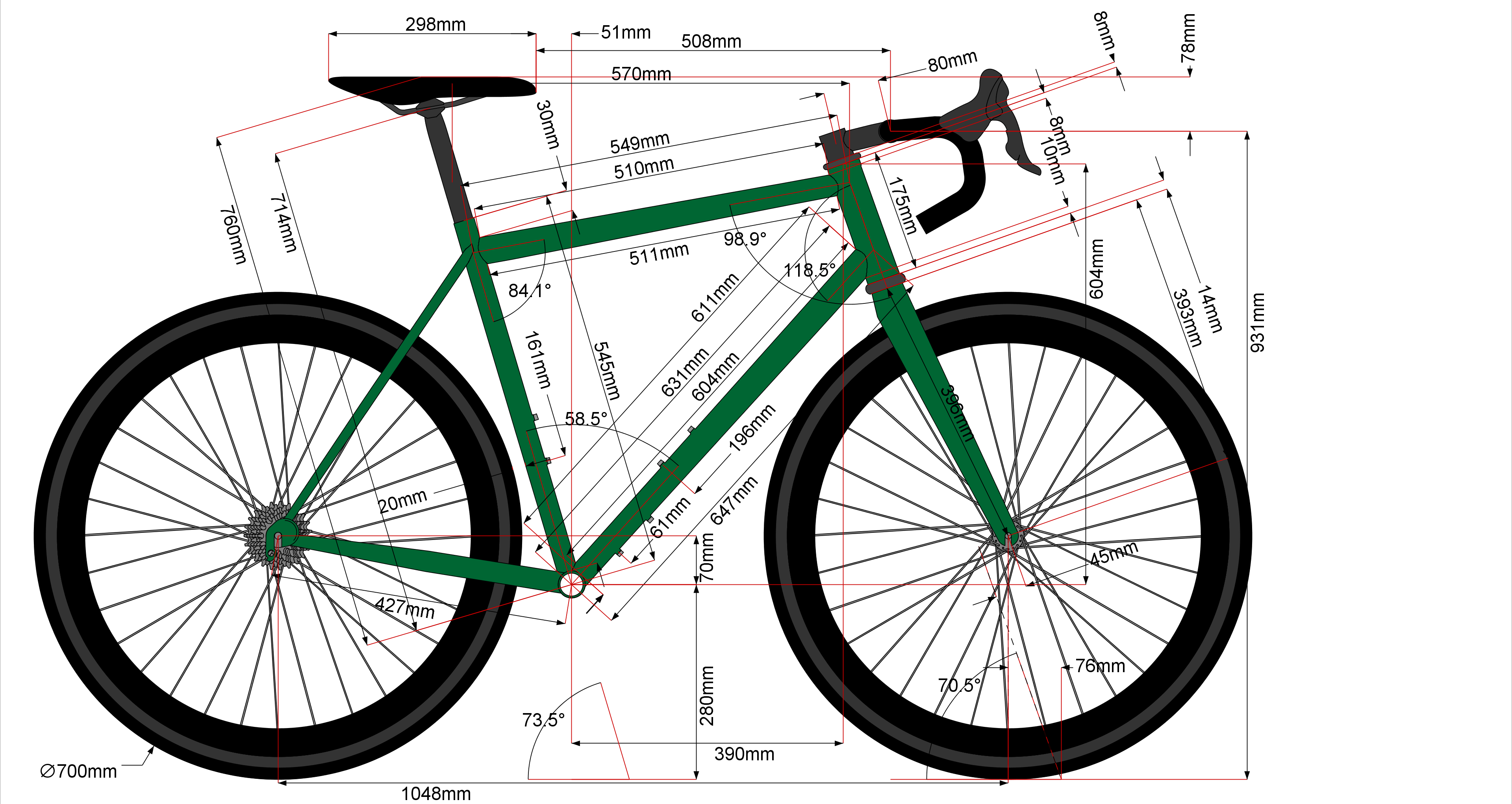

| TTA (B) | 549 mm |
|---|---|
| TTE (C) | 570 mm |
| HT (D) | 175 mm |
| ST (A) | 545 mm |
| CS (E) | 427 mm |
| HA (G) | 70.5° |
| SA (F) | 73.5° |
| BB drop | - 70 mm |
| BB height | 280 mm |
| Fork AC | 396 mm |
| Wheelbase | 1048 mm |
| Stack | 604 mm |
| Reach | 390 mm |
